Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply ranges from 10 to 20V
Undervoltage lockout
3.3V, 5V, and 15V input logic compatible
Cross-conduction prevention logic
Internally set deadtime
High-side output in phase with the input
Shut down input turns off both channels
Matched propagation delay for both channels
-10%
IR2103 IC DIP8
Original price was: ₨ 370.₨ 240Current price is: ₨ 240.
IR2104 IC SMD IR2104S SOP8 Driver
Original price was: ₨ 300.₨ 275Current price is: ₨ 275.
IR2104 Half Bridge Gate Driver IC DIP-8
Original price was: ₨ 335.₨ 300Current price is: ₨ 300.

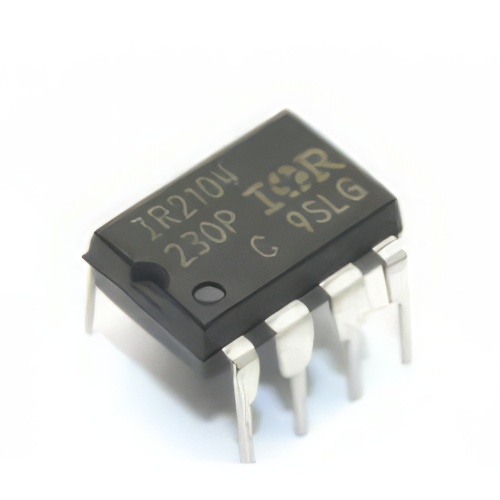

The IR2104 IC is a high-speed Half-Bridge gate driver chip that accepts low-power input to output high-power current drives. It can be used to drive high-power switching devices like MOSFETs and IGBTs and both high- and low-side MOSFETs. The IR2104 IC has a typical source current of 0.21A and a sink current of 0.36A. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.
The IR2104S SOP IC-8 Gate Driver is a high voltage, high-speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch-immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic.
The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates from 10 to 600 volts.
