Name: AD620AN IC Price in Pakistan
SKU: 29337
Availability: InStock

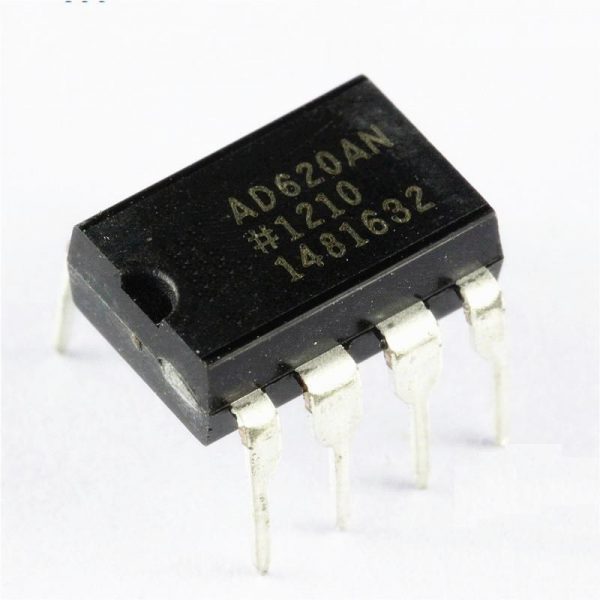

AD620AN IC Price in Pakistan

AD620 is an instrumentation amplifier which is low cost and high accuracy. It requires an external resister to set gain of 1 to 10,000. AD620 is 8 lead SOIC and DIP packaging and it is smaller than other designs and offers lower power. It supports 1.3mA max supply current. And it is good for battery power, for portable applications. AD620 Instrumentation Amplifier now in Pakistan

AD620AN Amplifier Chip IC is a low cost, high accuracy instrumentation amplifier.AD620AN requires only one external resistor to set gains of 1 to 10,000. Furthermore, the AD620AN features 8-lead SOIC and DIP packaging that is smaller than discrete designs and offers lower power (only 1.3 mA max supply current), making it a good fit for battery-powered, portable (or remote) applications.

Features of AD620AN Amplifier Chip IC:
Gain set with one external resistor (Gain range 1 to 10,000)
Wide power supply range (±2.3 V to ±18 V)
Higher performance than 3 op amp IA designs
Available in 8-lead DIP and SOIC packaging
Low power, 1.3 mA max supply current
Excellent dc performance (B grade)
50 μV max, input offset voltage
120 kHz bandwidth (G = 100)
9 nV/√Hz @ 1 kHz, input voltage noise
0.28 μV p-p noise (0.1 Hz to 10 Hz)
Applications of AD620AN Amplifier Chip IC:
Weigh scales
ECG and medical instrumentation
Transducer interface
Data acquisition systems
Industrial process controls
Battery-powered and portable equipment
