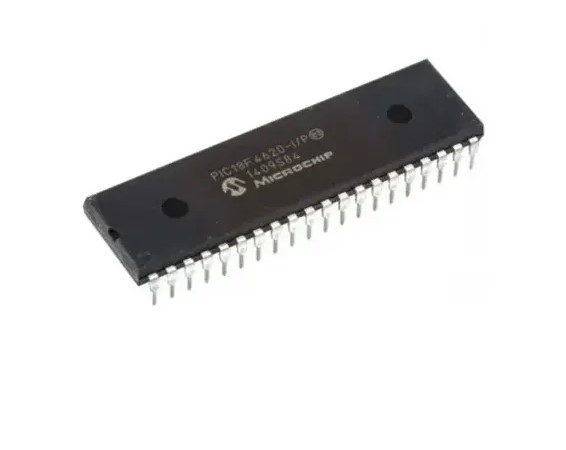

PIC18F4620 microcontroller belongs to ‘PIC18F’ family of microcontrollers. PIC18F4620 microchip controller is one of the popular Microcontrollers from the microchip technology, comes with a high-performance, enhanced flash, USB microcontroller with nano-Watt-Technology. This is an 8-bit microcontroller popular among makers and engineers due to its features and easy applications. PIC18F4620 pic microcontroller comes in various packages like DIP, QPF and QPN and can be selected according to the project requirement.
Features Of Enhanced FLASH Microcontroller PIC 18F4620:
40 MHz Max. CPU Speed
75 Instructions – 83 with Extended Instruction Set Enabled
31 Level Hardware Stack
Internal Oscillator – Selectable frequencies from 8 MHz to 31 kHz
25 I/O Pins – PIC18F2525/2620 Models
36 I/O Pins – PIC18F4525/4620 Models
nanoWatt Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Extended Watchdog Timer (WDT)
High/Low-Voltage Detection (HLVD) Module
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals Features Of PIC18F4620 Microchip Technology Microcontroller:
10-bit Analogue to Digital Converter (ADC) – PIC18F2525/2620 10 Channel; PIC18F4525/4620 13 Channel
Capture, Compare, PWM Modules – PIC18F2525/2620 x 2; PIC18F4525/4620 x 1
One Enhanced Capture, Compare, PWM Module – PIC18F4525/4620 Models Only
Two Comparators
One 8-bit Timer
Three 16-bit Timers
Master Synchronous Serial Port (MSSP) Module with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
