74LS02 NOR Gate IC Quad 2-input Price in Pakistan

Operating voltage range: +4.75 to +5.25V
Maximum supply voltage: 7V
Maximum current allowed to draw through each gate output: 8mA
TTL outputs
Low power consumption
Maximum ESD: 3.5KV
Typical Rise Time: 15ns
Typical Fall Time: 15ns
Operating temperature :0°C to 70°C
Storage Temperature: -65°C to 150°C
Operating temperature: 0°C to 75°C

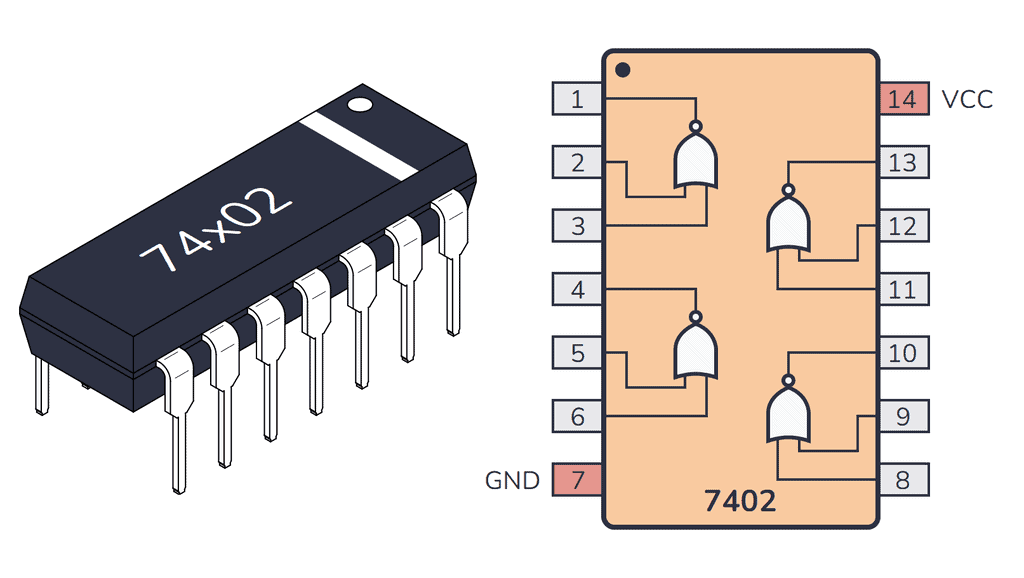

Pin Number Description
NORGATE 1
2 1A-INPUT1 of GATE 1
3 1B-INPUT2 of GATE 1
1 1Y-OUTPUT of GATE1
NORGATE 2
5 2A-INPUT1 of GATE 2
6 2B-INPUT2 of GATE 2
4 2Y-OUTPUT of GATE2
NORGATE 3
8 3A-INPUT1 of GATE 3
9 3B-INPUT2 of GATE 3
10 3Y-OUTPUT of GATE3
NORGATE 4
11 4A-INPUT1 of GATE 4
12 4B-INPUT2 of GATE 4
13 4Y-OUTPUT of GATE4
SHARED TERMINALS
7 GND- Connected to ground
14 VCC-Connected to positive voltage to provide power to all four gates
SKU: 0401 Categories: Discrete Electronic Components, ICs, Logic Gates Tags: 2input, 74LS02, Gate, IC, NOR, quad
