Size
7.12 x 6.5 x 3.5 mm
Pin Type
6 Pin
VF Type
1.2 V
Rise and Fall Time
10.0 / 10.0 micro s
BVCEO Min
80 V
CTR {7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}
20 min
Viso
5000 Vrms
Features
High isolation voltage between input and output (Viso=5000 V rms )
Creepage distance >7.62 mm
Other Applications
AC line monitor
Unknown polarity DC sensorProgrammable current level sensor
Telephone line interface
-17%

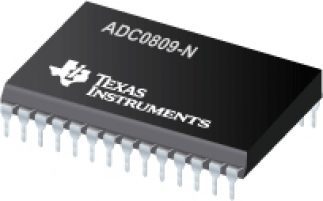

ADC-0809 Analog to Digital Converter Price in Pakistan
Original price was: ₨ 1500.₨ 1250Current price is: ₨ 1250.

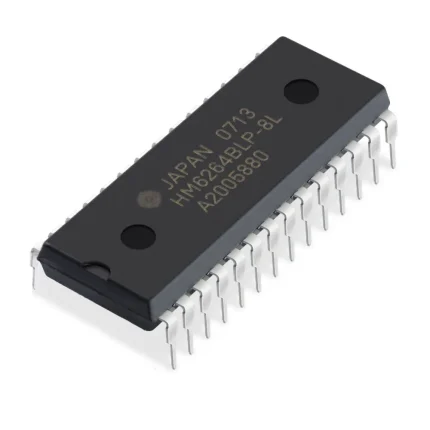

HM6264 IC High Speed Static RAM price in pakistan
Original price was: ₨ 1500.₨ 1275Current price is: ₨ 1275.

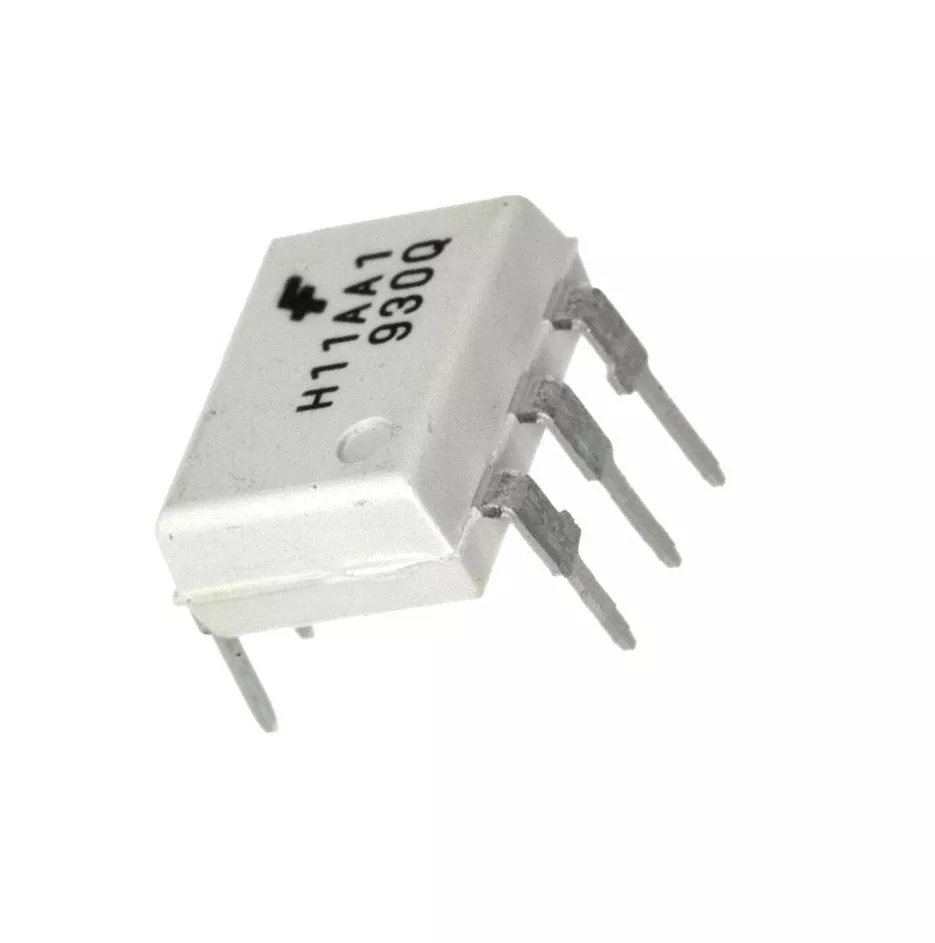

H11AA1 Optocoupler DIP 6 Pin IC Price in Pakistan
