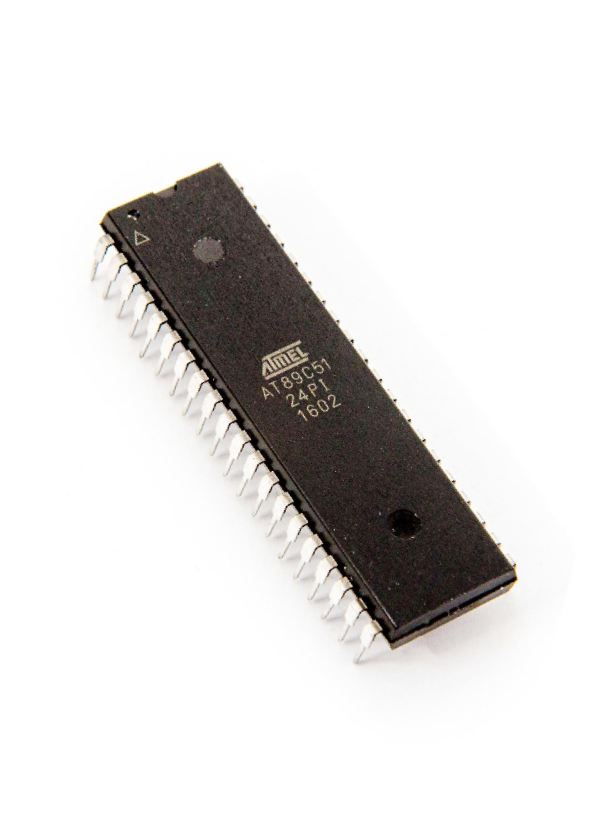

AT89C51 is an 8-bit microcontroller and belongs to Atmel’s 8051 family. ATMEL 89C51 has 4KB of Flash programmable and erasable read only memory (PEROM) and 128 bytes of RAM. It can be erased and program to a maximum of 1000 times.
In 40 pin AT89C51, there are four ports designated as P1, P2, P3 and P0. All these ports are 8-bit bi-directional ports, i.e., they can be used as both input and output ports. Except P0 which needs external pull-ups, rest of the ports have internal pull-ups. When 1s are written to these port pins, they are pulled high by the internal pull-ups and can be used as inputs. These ports are also bit addressable and so their bits can also be accessed individually.
Port P0 and P2 are also used to provide low byte and high byte addresses, respectively, when connected to an external memory. Port 3 has multiplexed pins for special functions like serial communication, hardware interrupts, timer inputs and read/write operation from external memory. AT89C51 has an inbuilt UART for serial communication. It can be programmed to operate at different baud rates. Including two timers & hardware interrupts, it has a total of six interrupts.
Features of Atmel AT89C51 Microcontroller:
CPU
8-bit 8051 family
Architecture
8051
Program Memory Size (Kbytes)
4K Flash
RAM (bytes)
128
EEPROM/HEF
Nil
Pin Count
40
Max. CPU Speed (MHz)
24
Peripheral Pin select (PPS)
No
Internal Oscillator
No
No. Of comparators
2
No. Of Operational Amplifier
0
No. Of ADC channels
Nil
Max ADC Resolution (bits)
NA
ADC with Computation
No
Number of DAC Converter
0
Max DAC resolution
0
Internal Voltage Reference
NA
Zero Cross Detect
No
No. Of 8-bit timers
0
No. Of 16-bit Timers
2
Signal Measurement Timer
0
Hardware Limit Timer
0
No. Of PWM outputs
0
Max PWM resolution
NA
Angular Timer
No
Math Accelerator
No
No. Of UART module
1
No. Of SPI Module
0
No. Of I2C module
0
No. Of USB Module
0
Windowed Watchdog Timer (WWDT)
No
CRC/Scan
No
Numerically Controlled Oscillator
0
Cap. Touch Channels
NA
Segment LCD
0
Minimum Operating Temperature (*C)
-55
Maximum Operating Temperature (*C)
125
Minimum Operating Voltage (V)
4
Maximum Operating Voltage (V)
5.5
High Voltage Capable
No
Specifications of Atmel AT89C51 Microcontroller:
Flash Memory : 4K Bytes
CPU:8-Bit
Maximum Operating Voltage:6.6V
Maximum Ocsillator Frequency: 0 Hz to 24 MHz
Internal RAM:128 x 8-Bit
Programmable I/O Lines:32
Timer/Counters:Two, 16-Bit
Package of Atmel AT89C51 Microcontroller:
1 x Atmel AT89C51 Microcontroller
