Vishay Semiconductor Opto Division ILD74
Type
Description
Select All
Category
Isolators
Optocouplers, Optoisolators
Transistor, Photovoltaic Output Optoisolators
Manufacturer
Vishay Semiconductor Opto Division
Series
–
Packaging
Tube
Part Status
Obsolete
Number of Channels
2
Voltage – Isolation
5300Vrms
Current Transfer Ratio (Min)
12.5% @ 16mA
Current Transfer Ratio (Max)
–
Turn On / Turn Off Time (Typ)
3µs, 3µs
Rise / Fall Time (Typ)
–
Input Type
DC
Output Type
Transistor
Voltage – Output (Max)
20V
Current – Output / Channel
–
Voltage – Forward (Vf) (Typ)
1.3V
Current – DC Forward (If) (Max)
60 mA
Vce Saturation (Max)
500mV
Operating Temperature
-55°C ~ 100°C
Mounting Type
Through Hole
Package / Case
8-DIP (0.300″, 7.62mm)
Supplier Device Package
8-DIP
Base Product Number
ILD74
-14%

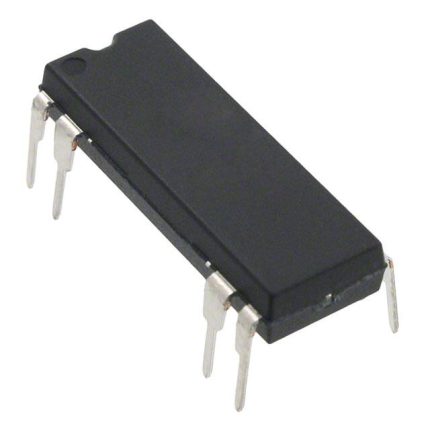

ISO122P ISO122 P Isolation Amp DIP IC
Original price was: ₨ 1375.₨ 1175Current price is: ₨ 1175.

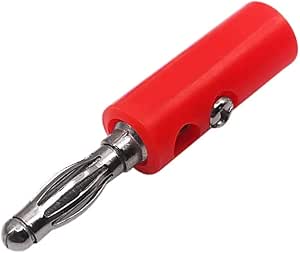

Banana Plug - Connector Male - 4mm - Red
Original price was: ₨ 40.₨ 30Current price is: ₨ 30.
Vishay Semiconductor Opto Division ILD74
Original price was: ₨ 550.₨ 475Current price is: ₨ 475.
