Part No.
TNY277PN
Description:
AC/DC Converters 18.5W 85-265 VAC 23.5W/230 VAC
Manufacturer:
Power Integrations
Product Category:
AC/DC Converters
Mounting Style:
Through Hole
Package/Case:
DIP-8
Output Voltage:
12 V
Output Power:
18 W
Input / Supply Voltage – Min:
85 VAC
Input / Supply Voltage – Max:
265 VAC
Technology:
Si
Switching Frequency:
132 kHz
Duty Cycle – Max:
65 {7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}
Operating Supply Current:
365 uA
Operating Temperature:
– 40 C ~ + 150 C
Series:
TNY277
Packaging:
Tube
Brand:
Power Integrations
Number of Outputs:
1 Output
Product Type:
AC/DC Converters
Subcategory:
PMIC – Power Management ICs
Tradename:
TinySwitch
Type:
Off Line Converter
Unit Weight:
2.268 g
Minimum Order Quantity
50 Piece

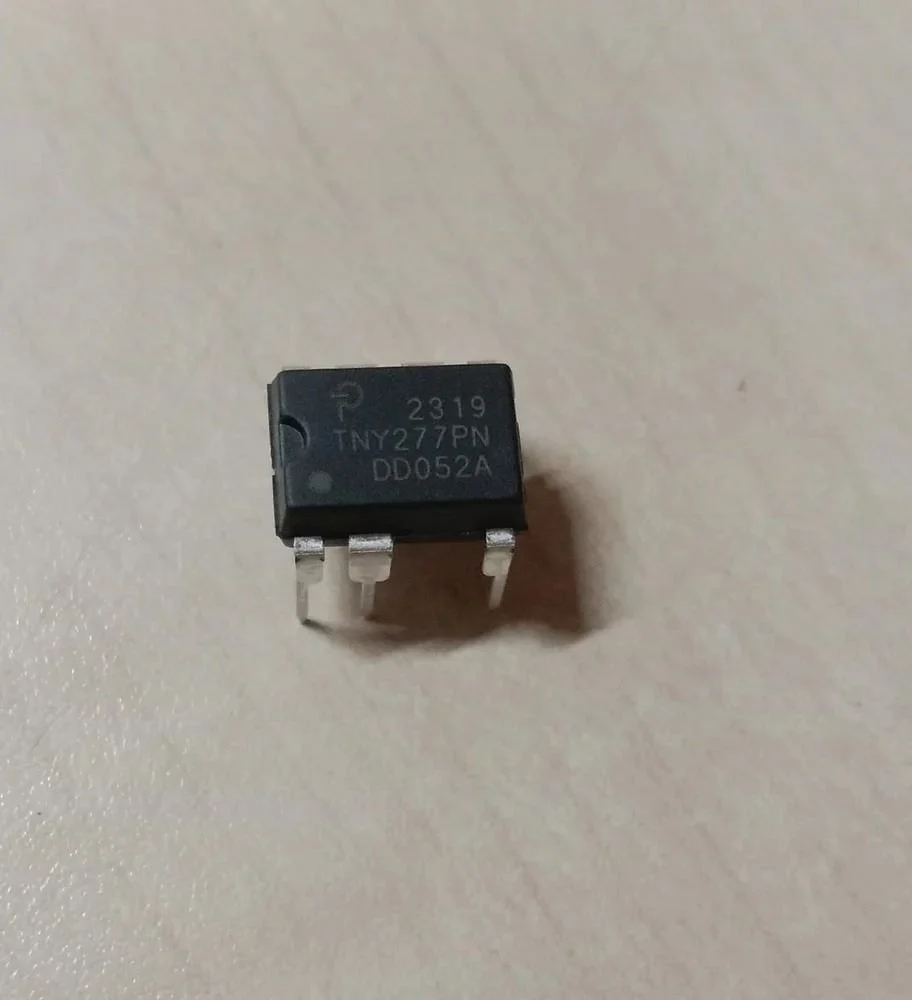

TNY277PN – Power Integrations OffLine Switcher IC – DIP-8 Package
TinySwitch-III incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable), and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability. Tags, Integrated Circuits, TNY274P, TNY274G, TNY275P, TNY276P, TNY277P, TNY278P, TNY279P, TNY280P/G.
Features/Specs:
Manufacturer: Part No: TNY277PN
Manufacturer: Power Integrations
Series: TNY277
Product Type: AC/DC Converters
Output Voltage: 12V
Operating Supply Current: 365 uA
Switching Frequency: 132 kHz
Output Power: 18 W
Number of Outputs: 1 Output
Duty Cycle: 65{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}
Input Supply Voltage Range: 85VAC ~ 265VAC
Operating Temperature Range: -40°C ~ 150°C
Mounting Style: Through Hole
Package/Case: DIP-8
Applications:
Chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, etc.
PC Standby and other auxiliary supplies
DVD/PVR and other low-power set-top decoders
Supplies for appliances, industrial systems, metering, etc.
