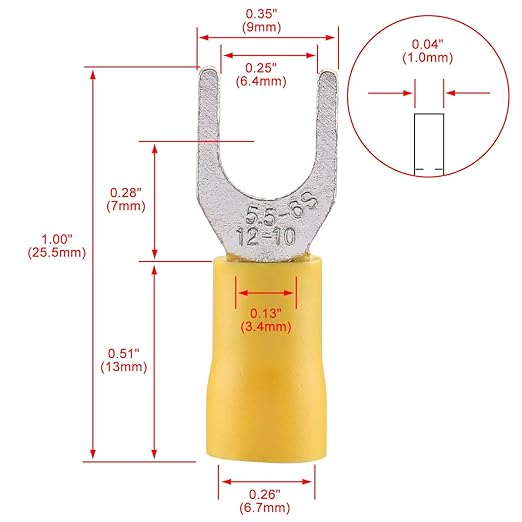

The SV5.5‑6 series refers to a pre‑insulated U‑shaped (fork/spade) terminal designed for crimping onto wires rated for 4–6 mm² (approximately 12–10 AWG) with a 6–6.4 mm stud size. The insulation is typically PVC, with color options like yellow or blue indicating wire gauge
The suffix denotes length:
-
SV5.5‑6S = short version (~23.9 mm overall length)
Specifications at a Glance
| Specification | Details |
|---|---|
| Wire Size | 4–6 mm² (12–10 AWG) |
| Stud/Screw Size | 6–6.4 mm (¼ inch) |
| Material | Copper (often tin-plated) |
| Insulation | PVC, color-coded (e.g., yellow/RED BLACK) |
| Length (Short / Long) | ~23.9 mm (S) / ~31.2 mm (L) |
| Current Rating | Up to 20A depending on variant |
