RV2-5 Insulated Ring Terminals PRICE IN PAKISTAN

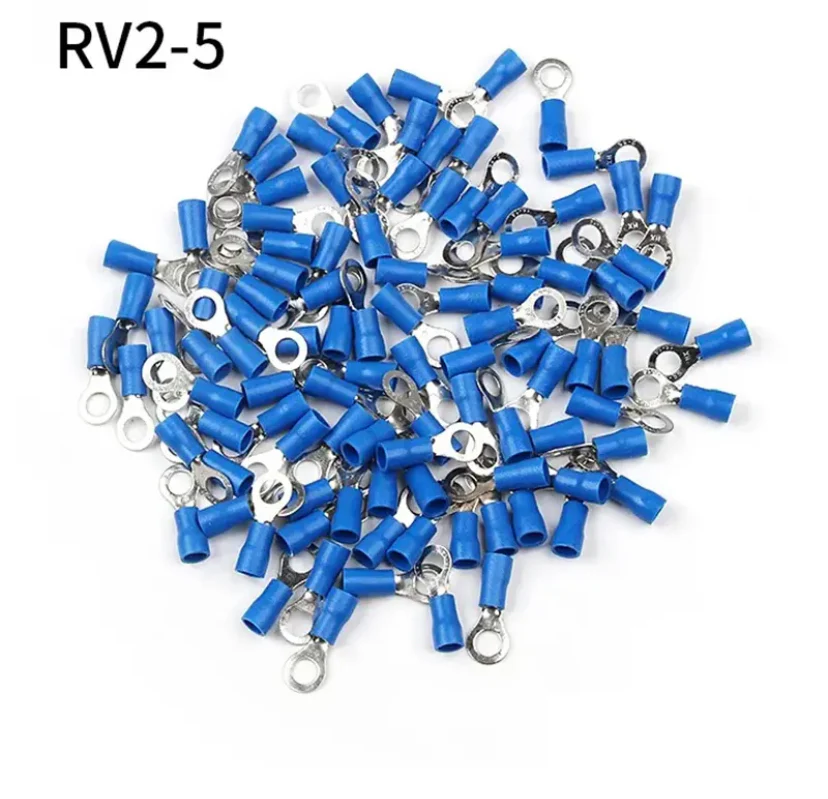

Overview of RV2‑5 Ring Terminals

These are insulated, crimp-style ring terminals commonly used for terminating wires and bolting them securely to devices or panels.

1. From GoldSupplier (Technical Dimensions)

• Designed for wire sizes 1.5–2.5 mm² (14–16 AWG)

• Typical maximum current: 27 A Two variants with slightly different inner diameters and flange measurements:

2. From MHD / Bao An Automation (Exact Dimensions and Materials)

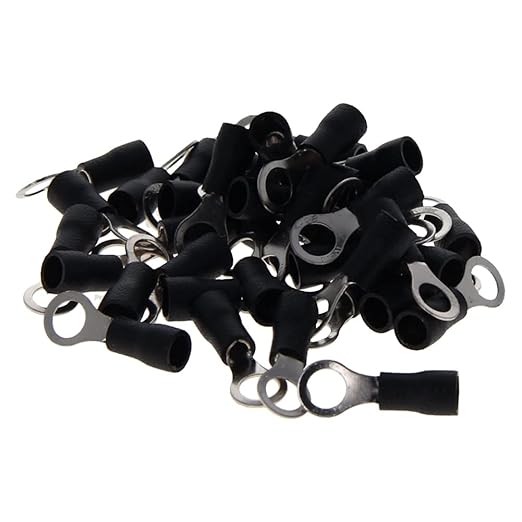

• Wire range: 1.5–2.5 mm², PVC-insulated in various colors including black and blue

• Ring inner diameter: 5.3 mm

• Outer dimension (width): 8.5 mm

• Overall height/length: 22.5 m

3. Additional Supplier Information: Made-in-China

• Insulated ring terminals RV2‑5 (and related series) available in multiple colors.

• Material: Tin‑plated copper with PVC insulation.

• Parameter	Value / Range
  Wire Range	1.5–2.5 mm² (14–16 AWG)
  Max Current	Approx. 27 A
  Bolt Size (ANSI)	#10
  Bolt Hole Diameter	5.3 mm
  Width (B)	~8.5 mm (sometimes up to 9.5 mm)
  Length / Height (L)	~22.5 mm
  Flange (F)	~7.75 mm (or ~7.25 mm variant)
  Insulation Material	PVC (in colors like blue, black, etc.)
  Conductor Material	Tin‑plated copper
  Certifications	CE, RoHS, UL, TUV, SGS (depending on supplier)
