RV2-6 Insulated Ring Terminals PRICE IN PAKISTAN

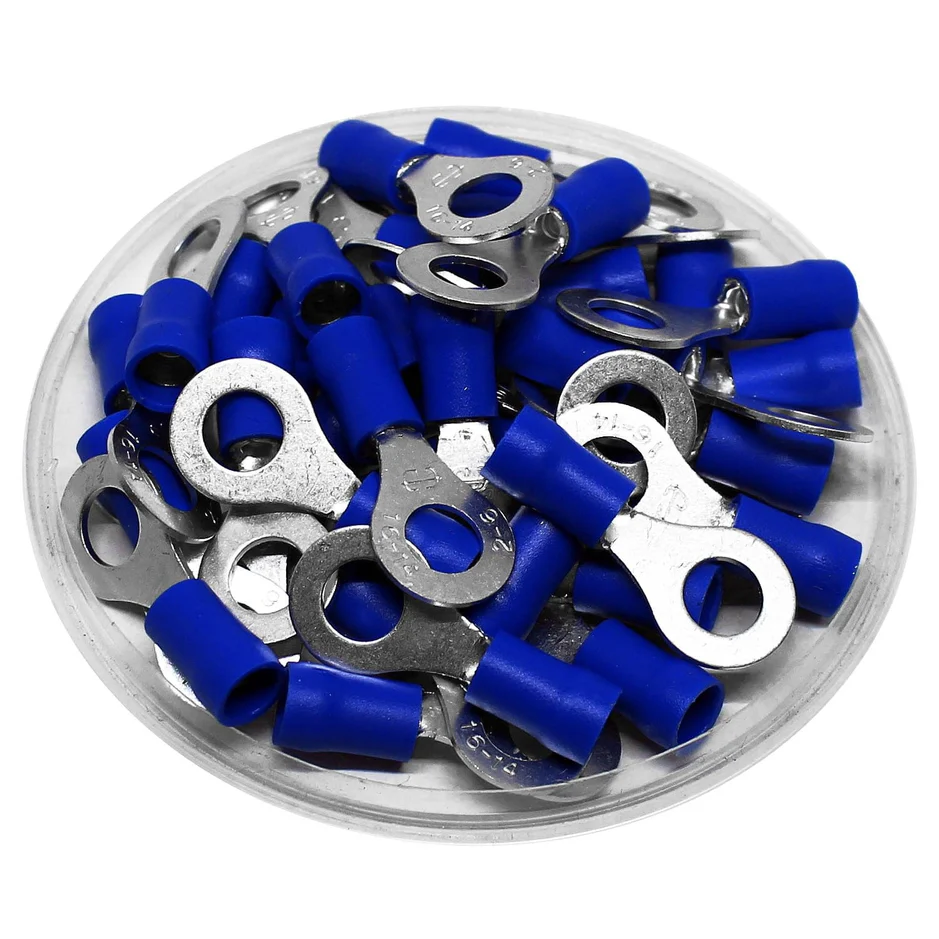

Product details of PVC Insulated Ring Type Crimp lugs RV2-6 6.0mm Hole Blue
Insulated Ring Type Crimp lugs designed to offer maximum efficiency under heavy-duty applications. Therefore these Terminals / lugs are ideal for use in applications which are subject to continuous mechanical vibrations viz. engines, railways, moving components etc. The terminal barrel is brazed and soft annealed which means that the terminal can be crimped in either direction.All the Terminals / lugs are tin plated to avoid oxidization and to achieve maximum corrosion protection.All the Terminals / lugs are tin plated to avoid oxidization and to achieve maximum corrosion protection. These Terminals / lugs are provided with PVC sleeves for protection against electrical shocks.

Specification of PVC Insulated Ring Type Crimp lugs RV2-6 6.0mm Hole Blue
Lug Type: Ring
Contact Material: Copper
Insulated: Yes
Insulation Material: PVC
Fit Cable Size: 1.04-2.63mm2 (A.W.G 16-14)
Internal Ring Diameter: 6.0mm
Outer Ring Diameter: 12.5mm
Stud Size: 11.0mm
Max Wire Size: 2.5mm2
Overall Length: 26.0mm
