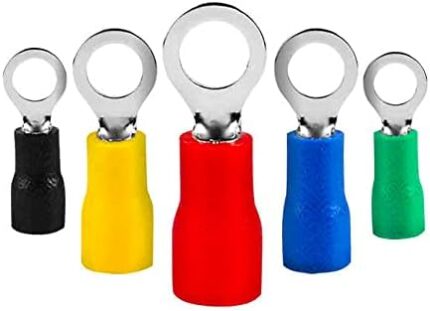

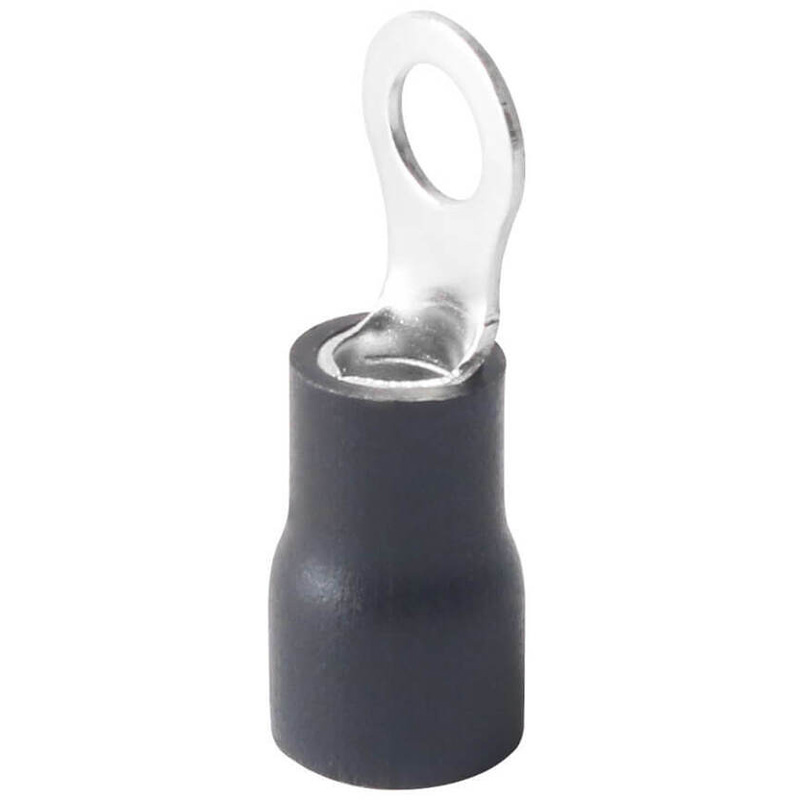

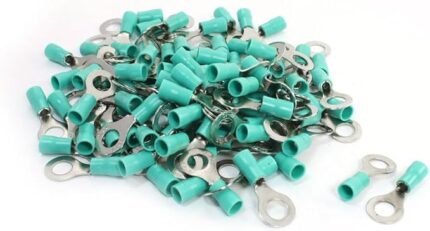

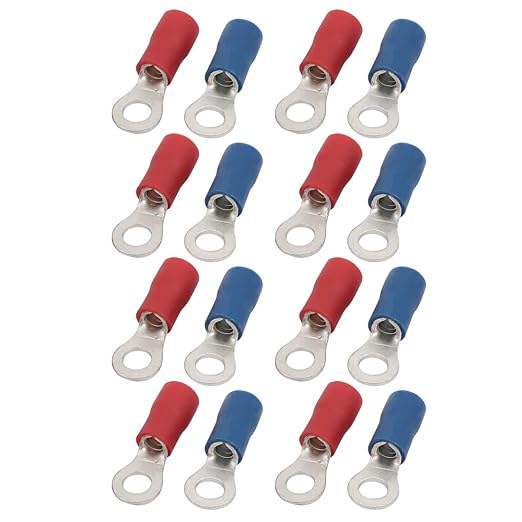

imply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format. Application Info:Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.Dimensions & Features:
| Wire Size: | 6Â AWG |
| Stud Size: | 3/8″Â Stud |
| Seam: | Brazed |
| T: | 1.5mm (.06″) |
| L: | 44.5mm (1.8″) |
| F: | 14.2mm (0.56″) |
| E: | 22.5mm (0.89″) |
| W: | 16mm (0.63″) |
| D: | 10.5mm (0.41″) |
| D1: | 5.8mm (0.23″) |
| D2: | 10.5mm (0.41″) |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C – 600 Volts |
| Max Electrical Current: | 10AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
