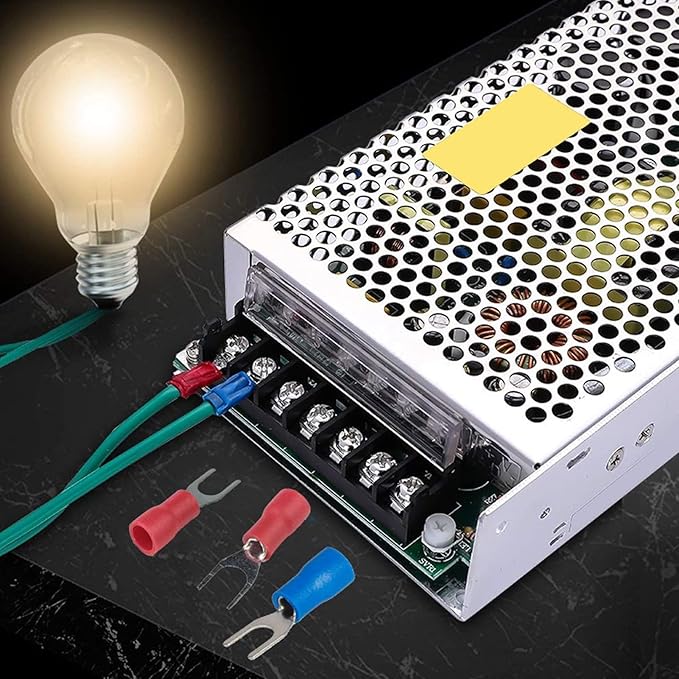

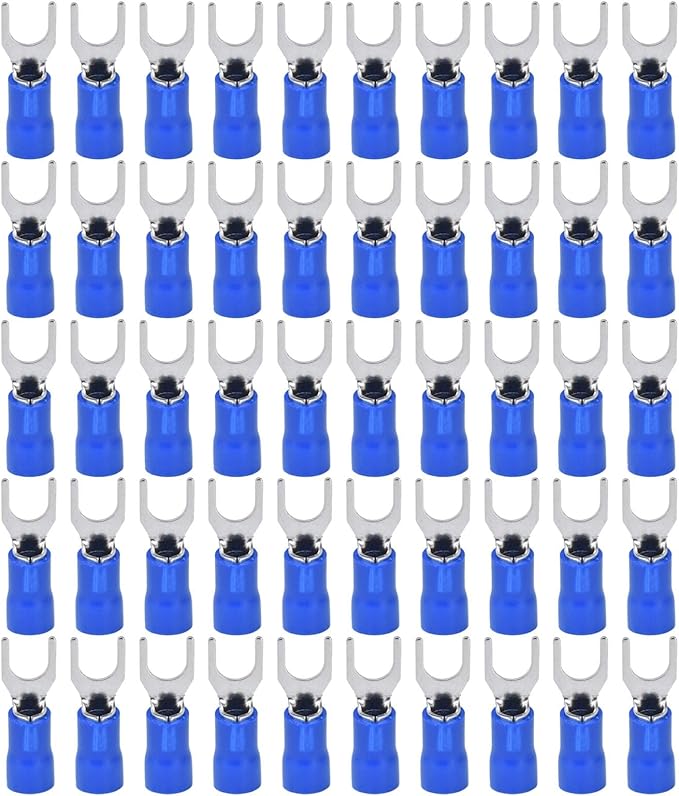

SV2‑5 thimble (insulated fork/spade crimp terminal) — that distinctive U‑shaped (fork) connector insulated with a colored sleeve (shown in blue in this particular photo).
What Is the SV2‑5 Thimble?
The SV2‑5 refers to a specific model in the SV series of insulated fork (thimble) terminals. Here’s what defines it:
-
Shape & Purpose: U‑shaped, fork‑style crimp terminal, also known as a “spade” or “thimble.” Ideal for secure connections to bolts or studs without removing them entirely
-
Wire Size Compatibility: Designed for 16–14 AWG wires (~1.5–2.5 mm²)
-
Bolt (Stud) Size: Fits a #10 bolt — approximately 5.3 mm diameter
-
Construction: Usually features a copper or brass core, often tin-plated for corrosion resistance, with a protective PVC or vinyl insulation sleeve
-
Electrical Rating: Typically handles up to 27 A, depending on the material and insulation design
Specifications at a Glance
| Specification | SV2‑5 Details |
|---|---|
| Shape | U‑type (fork / spade) |
| Wire Size | 16–14 AWG (1.5–2.5 mm²) |
| Bolt Size | #10 (approx. 5.3 mm) |
| Material | Tin‑plated copper or brass core + PVC/vinyl sleeve |
| Max Current | Up to ~27 A |
| Insulation Color | Available in multiple colors (blue, black, red, etc.) |
