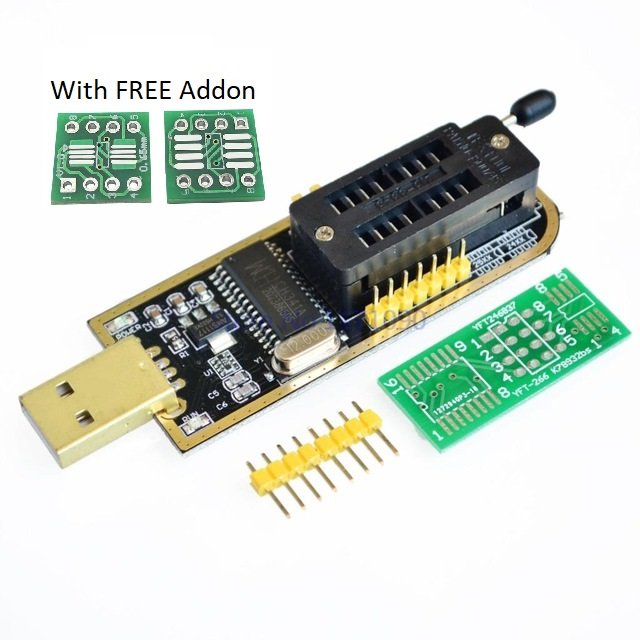

CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Price in Pakistan
To all sorts of color TV set memory (24 series IC), LCD (24.25 series IC) desktop motherboard (25 series IC) notebook (25 series IC) router (25 series IC) card (25 series IC) DVD (25 series IC), set-top boxes (25 series IC) software to unlock, backup, erasing, burning, check.
Summary
24 and 25 series of FLASH has been very popular at present. Burn for these chips, currently only professional programmer can support, but the price of a professional programmer is very expensive, not general maintenance users can have; So we can create a support block 24 series of EEPROM and ST, WINBOND, AMIC, MXIC, SST, SPANSION, EON, PMC and other manufacturers of 8 feet 25 series chip programmer.
The Programmer Features
By special USB chip CH341A production. USB1.1 communication. Burning speed than ordinary ATMEGA8 25
Series of programming 2-3 times faster.
Erase the Burning Check Speed about 2-3 mbit per minute.
Very suitable for amateur burning
24 and 25 series of FLASH.
Support All versions of Microsoft Windows 7, 8, 10 etc & Linux & Mac OS
Uses the USB port power supply
For SPI & IIC Chip Programming (24 & 25 Series)
Put the Programmer in Computer USB port
Open the “CH341A programmer software” the burning software.
Choose Chip Capacity if using 24 Series, Click Detect for auto Detection of Chip of 25 Series
Can Burn Write, Erase & Backup Chips
For Serial TTL Programming
Set the Jumper
Put the Programmer computer USB port,
Programmer has Serial Pinouts of RX, TX & GND
Connect RX Pin to TX Pin & TX pin to RX Pin & GND to GND
Choose corresponding COM port,
Open the Corresponding Download Software Platform for example (PUTTY for Serial Terminal Emulator)
Package Includes
1 x CH341A 24 25 Series EEPROM Flash BIOS USB Programmer
3 x PCBs for Flash ICs
