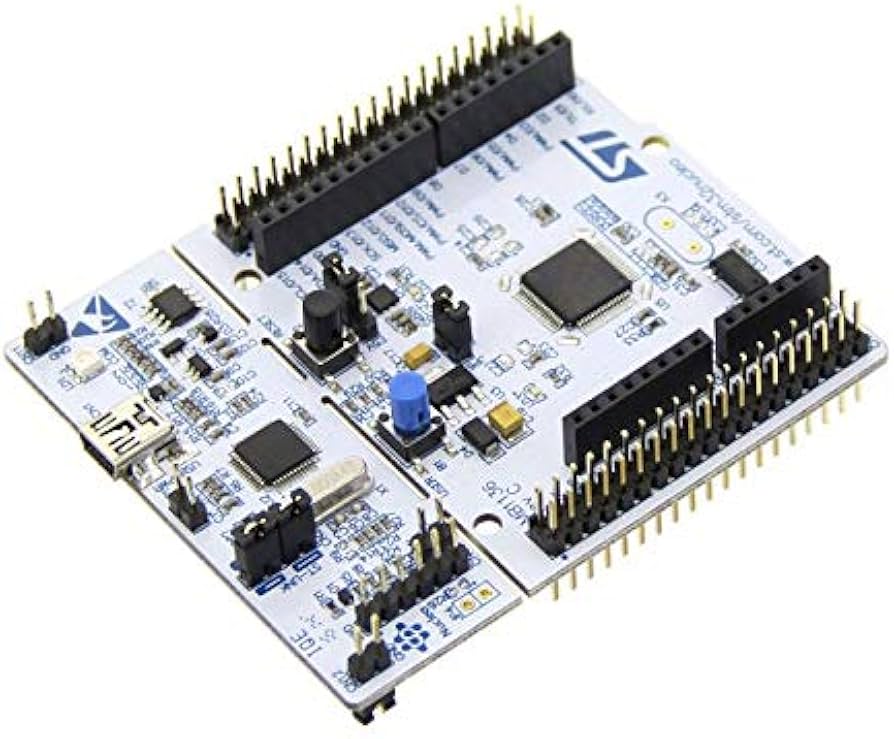

Features of NUCLEO-L401RE STM32 Nucleo development board:
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 micro controller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
Technical Specifications:
STM32 Nucleo development board with STM32F401RE MCU, 512KB flash memory
Additional connectivity: Arduino Uno Revision 3 connectivity and St Microelectronics Morpho connection
Debugger/programmer ST-LINK/V2-1 with SWD connector
Selection mode switch to use the kit as a standalone ST-LINK/V2-1
Power supplies: USB VBUS or external source (3.3V, 5V, 7-12V)
Three LEDs: USB communication; user; power
Push button: User and Reset
Interfaces supported on USB: Virtual Com port; Mass storage; Debug port
STM32 online software HAL library
Integrated Development Environments (IDEs) support include IAR, Keil, GCC-based IDEs
System requirements: Windows PC (XP, Vista, 7, 8), USB type A to Mini-B USB
Weight: 81 grams
Dimensions (mm): 80x69x20
-35%
0%
STM32F401 Development Board V3.0 – High-performance STM32F4 with 84MHz, 64KB SRAM, and 256KB Flash Price in Pakistan
Original price was: ₨ 1200.₨ 950Current price is: ₨ 950.
STM32F407 DISCOVERY BOARD Price in Pakistan
Original price was: ₨ 15000.₨ 13000Current price is: ₨ 13000.
STM32F401 NUCLEO-F401RE Board STM32 Price in Pakistan
Original price was: ₨ 10000.₨ 6500Current price is: ₨ 6500.
TM32F401RE Nucleo Board enables you to build and evaluate your own prototype with the STM32 F4 family of high performance micro controllers in an embedded application. A simple to use development platform that can offer a quick solution in evaluating and developing with any Arm Cortex™ M4 processor STM32 F4 32-bit flash micro controllers in the LQFP64 package. The Nucleo development board connects with the Arduino™ and will support most shields. Also the ST Morpho headers help increase the functionality of the Nucleo open development platform (ODP).electronicstore.pk
