Packaging Tube
Series PIC® 16F
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity I²C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 22
Program Memory Size 7KB (4K x 14)
Program Memory Type FLASH
EEPROM Size –
RAM Size 192 x 8
Voltage – Supply (Vcc/Vdd) 4 V ~ 5.5 V
Data Converters A/D 5x8b
Oscillator Type External
Operating Temperature -40°C ~ 85°C
Supplier Device Package 28-SPDIP
-15%
PIC16C57-I/P, 8bit PIC Microcontroller Price in Pakistan
Original price was: ₨ 2250.₨ 2000Current price is: ₨ 2000.
0 ohm 0603 smd-resistor Price in Pakistan
Original price was: ₨ 5.₨ 4Current price is: ₨ 4.

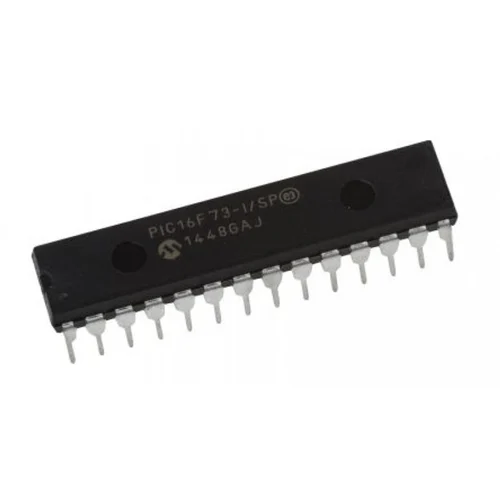

PIC16F73 -I/SP Microcontrollers DIP-28 Price in Pakistan
Original price was: ₨ 1000.₨ 850Current price is: ₨ 850.
20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
22 I/O Pins – PIC16F73/76 Models
33 I/O Pins – PIC16F74/77 Models
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
