Core: ARM® 32-bit Cortex® -M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories
Up to 1 Mbyte of Flash memory
Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM
Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
1.8 V to 3.6 V application supply and I/Os
POR, PDR, PVD and BOR
4-to-26 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC (1{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428} accuracy)
32 kHz oscillator for RTC with calibration
Internal 32 kHz RC with calibration
Sleep, Stop and Standby modes
VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM
3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
2×12-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
Debug mode
Serial wire debug (SWD) & JTAG interfaces
Cortex-M4 Embedded Trace Macrocell™
Up to 140 I/O ports with interrupt capability
Up to 136 fast I/Os up to 84 MHz
Up to 138 5 V-tolerant I/Os
Up to 15 communication interfaces
Up to 3 × I²C interfaces (SMBus/PMBus)
Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)
Up to 3 SPIs (42 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock
2 × CAN interfaces (2.0B Active)
SDIO interface
Advanced connectivity
USB 2.0 full-speed device/host/OTG controller with on-chip PHY
USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
8- to 14-bit parallel camera interface up to 54 Mbytes/s
True random number generator
CRC calculation unit
96-bit unique ID
RTC: subsecond accuracy, hardware calendar
-13%
STM32F401 NUCLEO-F401RE Board STM32 Price in Pakistan
₨ 10000 Original price was: ₨ 10000.₨ 6500Current price is: ₨ 6500.

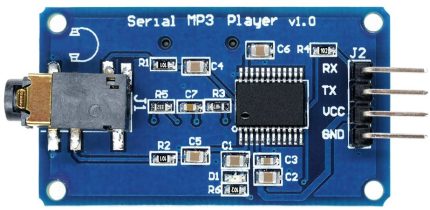

Yx5300 Mp3 Music Player Uart Control Serial Module In Pakistan
₨ 750 Original price was: ₨ 750.₨ 650Current price is: ₨ 650.

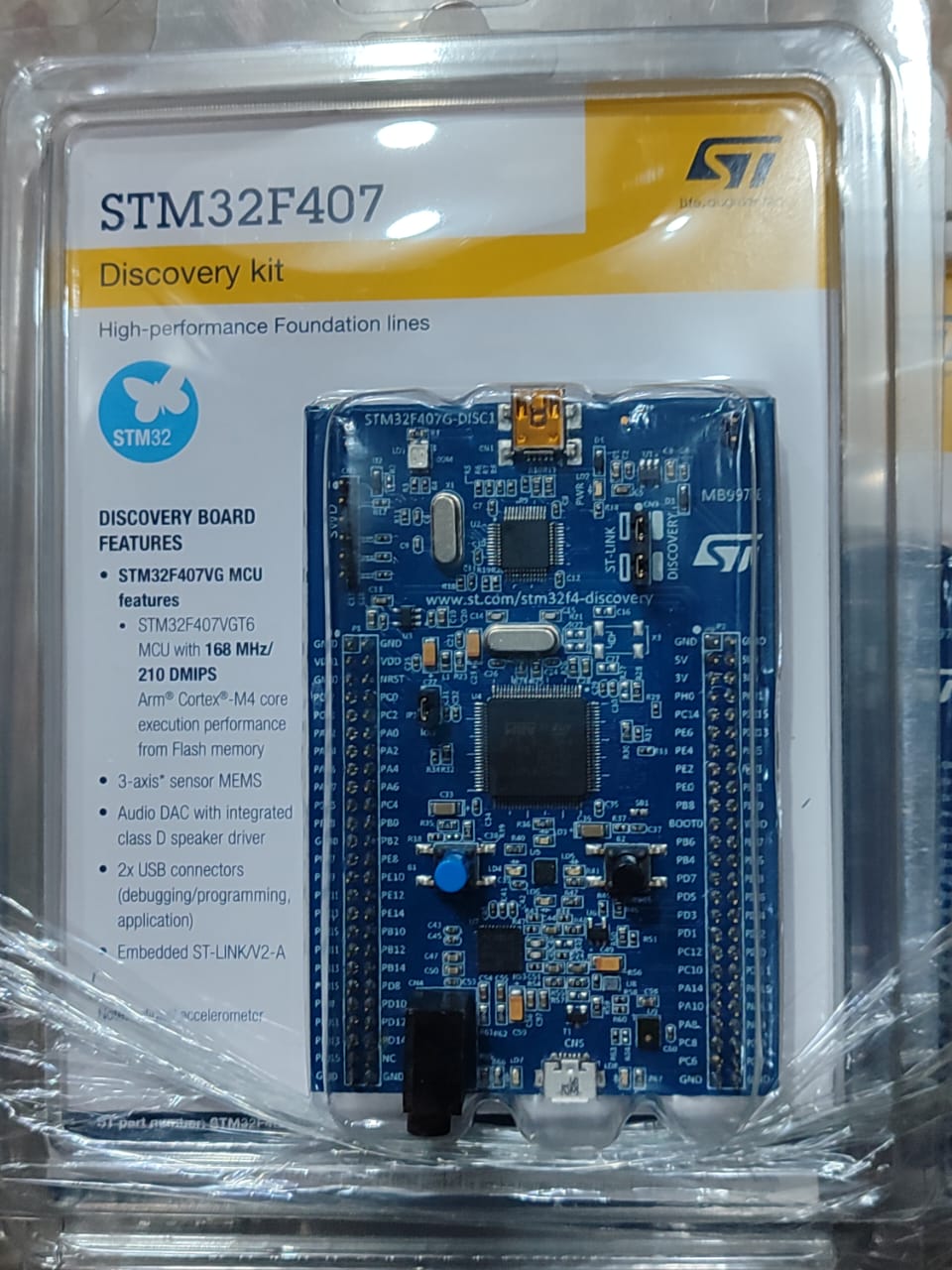

STM32F407 DISCOVERY BOARD Price in Pakistan
₨ 15000 Original price was: ₨ 15000.₨ 13000Current price is: ₨ 13000.
The STM32F407 Discovery Kit for STM32F407 kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to easily develop applications featuring audio. It includes an ST-LINK embedded debug tool, one ST-MEMS digital accelerometer, a digital microphone, one audio DAC with the integrated class D speaker driver, LEDs, push-buttons and a USB OTG micro-AB connector
Categories: MICROCONTROAL/Programmer, SENSOR/MODULE
Description
Reviews (0)
Be the first to review “STM32F407 DISCOVERY BOARD Price in Pakistan” Cancel reply
Shipping & Delivery
