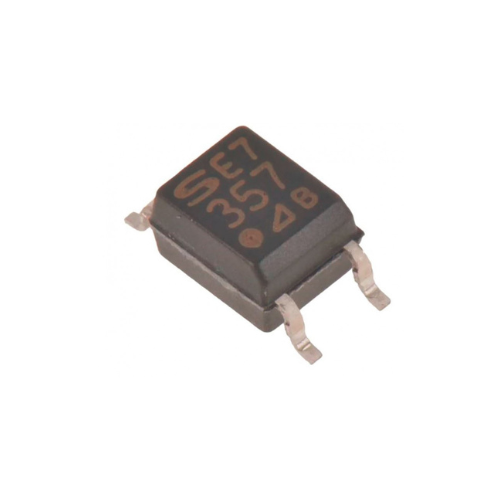

The PC357 contains an IRED optically coupled to a phototransistor. It is packaged in a 4-pin Mini-flat package. Input-output isolation voltage(rms) is 3.75kV. Collector-emitter voltage is 80V and CTR is 50{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428} to 600{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428} at input current of 5mA.
Features:-
• 4-pin Mini-flat package
• Double transfer mold package (Ideal for Flow Soldering)
• High collector-emitter voltage (VCEO : 80V)
• Current transfer ratio (CTR) : MIN. 50{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428} at IF=5mA, VCE=5V
• Several CTR ranks available
• High isolation voltage between input and output (Viso(rms) : 3.75kV) 7. RoHS directive compliant
Applications:-
• Hybrid substrates that require high density mounting
• Programmable controllers
Specification:-
Symbol Parameter Rating Units
IF Forward current 50 mA
IFM Input Peak forward current 1 A
VR Reverse voltage 6 V
P Power dissipation 70 mW
VCEO Collector-emitter voltage 80 V
VECO Emitter-collector voltage 6 V
IC Collector current 50 mA
PC Collector power dissipation 150 mW
Ptot Total power dissipation 170 mW
Topr Operating temperature −30 to +100 °C
Tstg Storage temperature −40 to +125 °C
Viso (rms) Isolation voltage 3.75 kV
Tsol Soldering temperature 260 °C
