The ICL8038 waveform generator is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms with a minimum of external components. The frequency (or repetition rate) can be selected externally from 0.001Hz to more than 300kHz using either resistors or capacitors, and frequency modulation and sweeping can be accomplished with an external voltage. The ICL8038 is fabricated with advanced monolithic technology, using Schottky barrier diodes and thin f ilm resistors, and the output is stable over a wide range of temperature and supply variations. These devices may be interfaced with phase locked loop circuitry to reduce temperature drift to less than 250ppm/oC
-17%
ICL7662CPA SWITCHING VOLTAGE REGULATOR IC Price in Pakistan
Original price was: ₨ 250.₨ 200Current price is: ₨ 200.

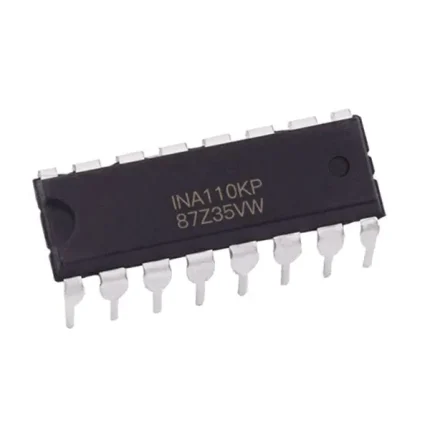

INA110 IC Chip
Original price was: ₨ 1500.₨ 1350Current price is: ₨ 1350.

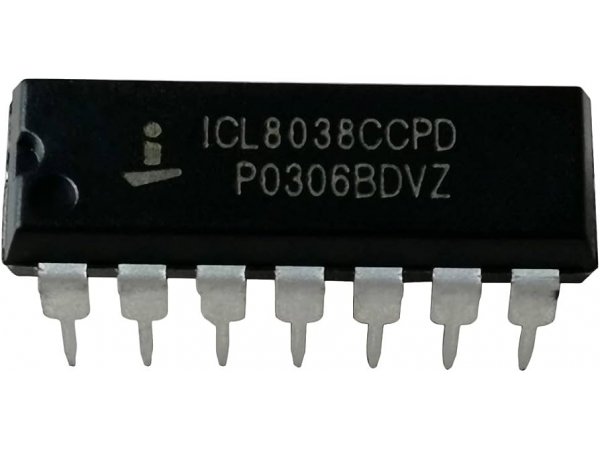

ICL8038 WAVEFORM GENERATOR OSCILLATOR GEN DIP-14 IC
Original price was: ₨ 450.₨ 375Current price is: ₨ 375.
Description
Reviews (0)
Shipping & Delivery
Related products
74LS02 NOR Gate IC Quad 2-input Price in Pakistan
Operating voltage range: +4.75 to +5.25V
Maximum supply voltage: 7V
Maximum current allowed to draw through each gate output: 8mA
TTL outputs
Low power consumption
Maximum ESD: 3.5KV
Typical Rise Time: 15ns
Typical Fall Time: 15ns
Operating temperature :0°C to 70°C
Storage Temperature: -65°C to 150°C
Operating temperature: 0°C to 75°C
Pin Number Description
NORGATE 1
2 1A-INPUT1 of GATE 1
3 1B-INPUT2 of GATE 1
1 1Y-OUTPUT of GATE1
NORGATE 2
5 2A-INPUT1 of GATE 2
6 2B-INPUT2 of GATE 2
4 2Y-OUTPUT of GATE2
NORGATE 3
8 3A-INPUT1 of GATE 3
9 3B-INPUT2 of GATE 3
10 3Y-OUTPUT of GATE3
NORGATE 4
11 4A-INPUT1 of GATE 4
12 4B-INPUT2 of GATE 4
13 4Y-OUTPUT of GATE4
SHARED TERMINALS
7 GND- Connected to ground
14 VCC-Connected to positive voltage to provide power to all four gates
SKU: 0401 Categories: Discrete Electronic Components, ICs, Logic Gates Tags: 2input, 74LS02, Gate, IC, NOR, quad
AD620AN IC Price in Pakistan
AD620 is an instrumentation amplifier which is low cost and high accuracy. It requires an external resister to set gain of 1 to 10,000. AD620 is 8 lead SOIC and DIP packaging and it is smaller than other designs and offers lower power. It supports 1.3mA max supply current. And it is good for battery power, for portable applications. AD620 Instrumentation Amplifier now in Pakistan
Atmega16 Atmega 16A PRICE PRICE in Pakistan
The ATmega16A is a low-power CMOS 8-bit microcontroller based on the Atmel AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega16A achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
