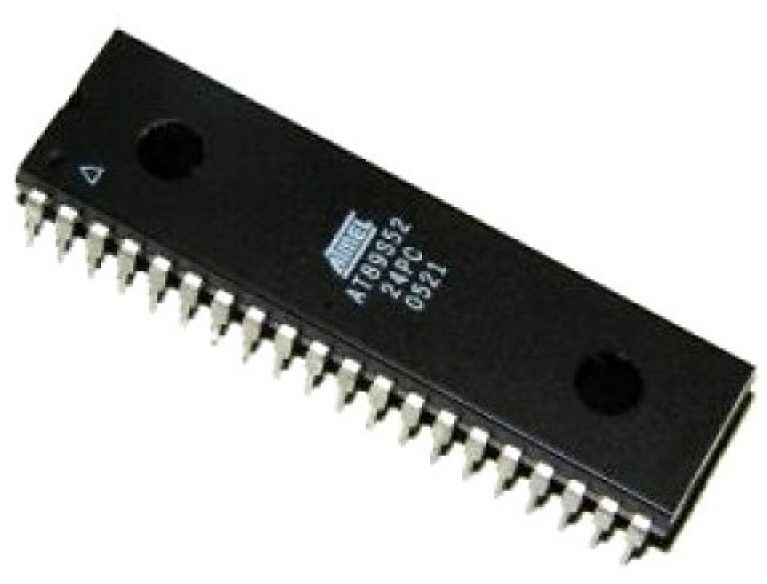

IC Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.
The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer.
AT89S52 is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes.
By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications
The Atmel AT89S52 is an 8051 based Full Static CMOS controller with Three-Level Program Memory Lock, 32 I/O lines, 3 Timers/Counters, 8 Interrupts Sources, Watchdog Timer, 2 DPTRs, 8K Flash Memory, 256 Bytes On-chip RAM.
This micro controller AT89S52 finds its applications from domestic devices to the industrial level to provide digital control to embedded systems. The Microcontroller also has Operating mode, Idle Mode, and Power-down mode which makes it suitable for battery-operated applications.
The AT89S52 micro controller is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory.
The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout.
Features: –
Compatible with MCS-51® Products
8K Bytes of In-System Programmable (ISP) Flash Memory – Endurance: 1000 Write/Erase Cycles
4.0V to 5.5V Operating Range
Fully Static Operation: 0 Hz to 33 MHz
Three-level Program Memory Lock
256 x 8-bit Internal RAM
32 Programmable I/O Lines
Three 16-bit Timer/Counters
Eight Interrupt Sources
Full Duplex UART Serial Channel
Low-power Idle and Power-down Modes
Interrupt Recovery from Power-down Mode
Watchdog Timer
Dual Data Pointe
