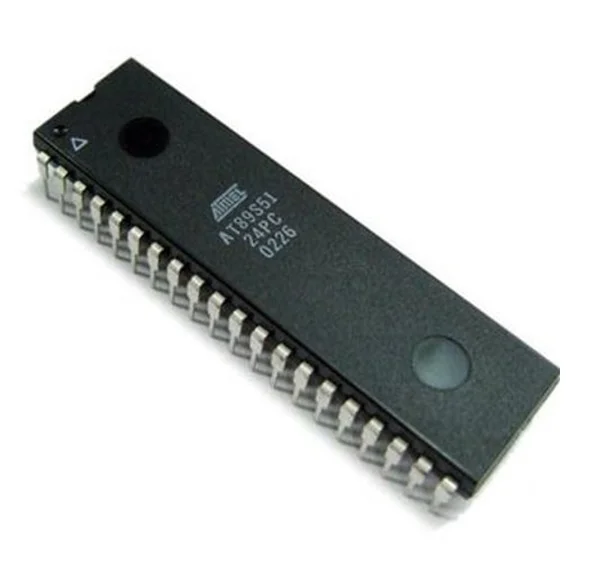

AT89S51-24PU – 8-Bit Microcontroller With 4K Bytes In-System Programmable Flash – DIP-40 Package
The Atmel 8051 AT89S51 is a low-power, high-performance CMOS 8-bit microcomputer with 4K bytes of Flash Programmable and Erasable Read Only Memory (ROM). The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard MCS-51™ instruction set and pin out. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer.
Features of 89S51 Microcontroller:
Compatible with MCS®-51 Products
4K Bytes of In-System Programmable (ISP) Flash Memory Endurance: 10,000 Write/Erase Cycles
4.0V to 5.5V Operating Range
Fully Static Operation: 0 Hz to 33 MHz
Three-level Program Memory Lock
128 x 8-bit Internal RAM
32 Programmable I/O Lines
Two 16-bit Timer/Counters
Six Interrupt Sources
Full Duplex UART Serial Channel
Low-power Idle and Power-down Modes
Interrupt Recovery from Power-down Mode
Watchdog Timer
Dual Data Pointer
Power-off Flag
Fast Programming Time
Flexible ISP Programming (Byte and Page Mode)
Green (Pb/Halide-free) Packaging Option
Specifications of ATMEL 8051 AT89S51:
Manufacturer Part No: AT89S51-24PU
Manufacturer: Microchip Technology
Series: 89S
Product Type: 8-bit Microcontrollers
Core: 8051
Program Memory Size: 4 kB
Data Bus Width: 8 bit
ADC Resolution: No ADC
Maximum Clock Frequency: 24 MHz
Number of I/Os: 32 I/O
Data RAM Size: 128 B
Supply Voltage Range: 4V ~ 5.5V
Interface Type: UART
Number of Timers/Counters: 2 Timer
Processor Series: AT89x
Program Memory Type: Flash
Operating Temperature Range: -40°C ~ +85°C
Mounting Style: Through Hole
Package/Case: DIP-40
Applications:
Multiple DIY Projects
Very good choice if you are learning ATmel
Projects requiring Multiple I/O interfaces and communications
Replacement for Arduino Module
Datasheet:
AT89S51 Microcontroller
Package Includes:
1 x AT89S51-24PU – 8-Bit Microcontroller – DIP-40 Package
