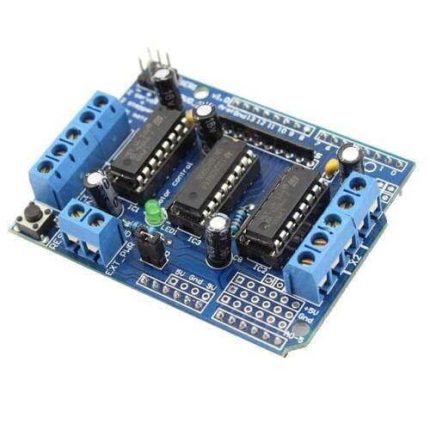

    L293 L293d Motor Driver Module Arduino Motor Driver Shield In Pakistan Original price was: ₨ 550.Current price is: ₨ 500.

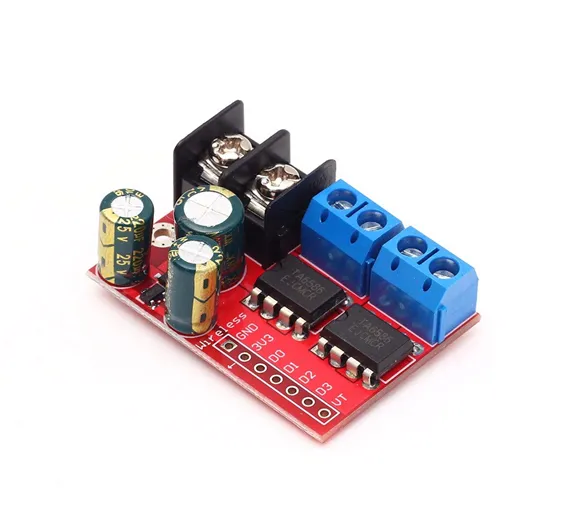

    ZK 5AD Dual H Bridge Channel DC Motor Drive Controller Board Module Motor Commutation PWM Speed Regulator in Pakistan

    Original price was: ₨ 550.Current price is: ₨ 450.

    Features:
    High power;
    .Small size;
    Low power consumption;
    Simple operation;
    Dual Driver;
    Support independent control for 2 motors;
    .Support 433MHz remote control(Not included).
    Parameters:
    Product Name: 5A Dual Motor Drive Module
    Product Number: ZK-5AD
    Working Voltage: DC 3.0V-14V
    Input Signal Voltage:DC 2.2V-6.0V
    Drive Current: 5A
    Stand-by Current:10uA
    Working Temperature range: -20℃~85℃
    Working Humidity range: 0{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}-95{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}RH
    Size:38*27*18mm
    .Mounting hole diameter:2mm
    4.Conventional control method

    Module can control 2 DC motors separately.
    D0 and D1 control Motor 1;
    D2 and D3 control Motor 2;
    High level signal is DC 2.2V-6.0V;
    Low level signal is DC 0.0V-0.7V;
    D0~D3 can receive control signal from MCU and other signal source;
    Control logic by Drive Logic Table shown as following in the description picture.

    Compare
    Add to wishlist
    Category:
    Description

    This 5A Dual Motor Driver is DC Motor Speed Controller which is also Pulse Width Modulator. Abbreviation PWM.DC motor governor is a device for adjusting the speed of a DC motor. It has been widely used in DC motor speed regulation, industrial conveyor belt speed regulation, lighting and lighting mediation, computer power supply cooling, DC fan and so on.

    Features:
    High power;
    .Small size;
    Low power consumption;
    Simple operation;
    Dual Driver;
    Support independent control for 2 motors;
    .Support 433MHz remote control(Not included).
    Parameters:
    Product Name: 5A Dual Motor Drive Module
    Product Number: ZK-5AD
    Working Voltage: DC 3.0V-14V
    Input Signal Voltage:DC 2.2V-6.0V
    Drive Current: 5A
    Stand-by Current:10uA
    Working Temperature range: -20℃~85℃
    Working Humidity range: 0{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}-95{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}RH
    Size:38*27*18mm
    .Mounting hole diameter:2mm
    4.Conventional control method

    Module can control 2 DC motors separately.
    D0 and D1 control Motor 1;
    D2 and D3 control Motor 2;
    High level signal is DC 2.2V-6.0V;
    Low level signal is DC 0.0V-0.7V;
    D0~D3 can receive control signal from MCU and other signal source;
    Control logic by Drive Logic Table shown as following in the description picture.
    Package Include:
    1XZK 5AD Dual H Bridge Channel DC Motor Drive Controller Board Module Motor Commutation PWM Speed Regulator
