he ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, ESP32-S3-ESP32 S3 Dev Board – 16MB Flash, 8MB PSRAM, 2 x USB-C

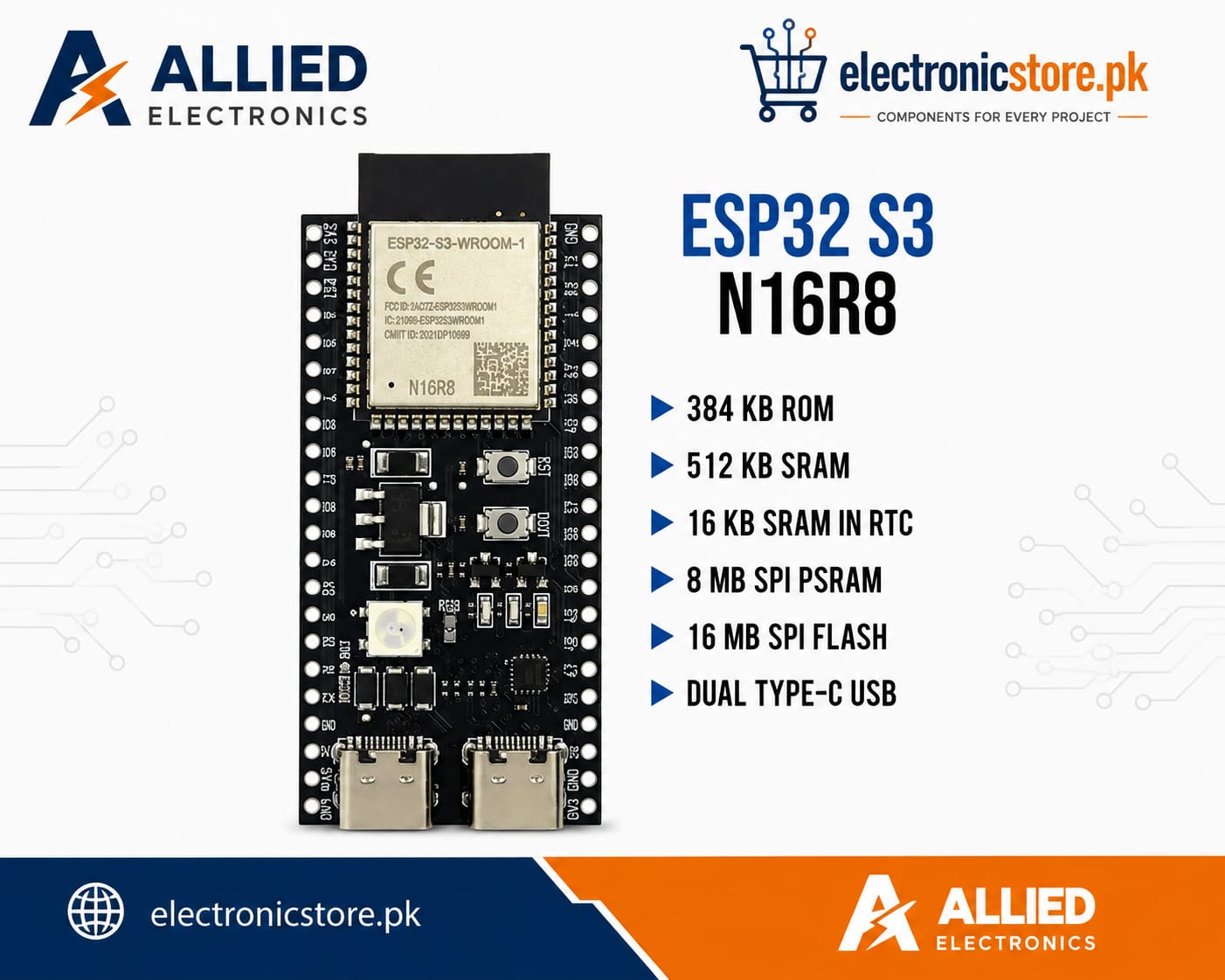

The ESP32-S3 development board is assembled with an original ESP32-S3-WROOM-1 module from Espressif, with 16MB Flash and 8MB PSRAM (ESP32-S3-WROOM-1-N16R8). It is a general-purpose Wi-Fi + Bluetooth® LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing.
The ESP32-S3 is a dual-core XTensa LX7 MCU, capable of running at 240 MHz. Apart from its 512 KB of internal SRAM, it also comes with integrated 2.4 GHz, 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE) connectivity that provides long-range support. It has 45 programmable GPIOs and supports a rich set of peripherals. ESP32-S3 supports larger, high-speed octal SPI flash, and PSRAM with configurable data and instruction cache. There is a RGB WS2812 LED connected to IO38. It has a Red, Green and Blue LED that are individually addressable. This module has 2 USB Type C connectors. The one is used to power the board, for flashing applications to the chip, as well as for communication with the chip via the on-board USB-to-UART bridge. It is connected to a UART of the ESP32 chip via a CH340 chip. The second USB connector is connected to the ESP32-S3 full-speed USB OTG interface, compliant with the USB 1.1 specification. It can also be used to power to the board, for flashing applications to the chip, for communication with the chip using USB 1.1 protocols, as well as for JTAG debugging.
Quick Spec
XTensa dual-core 32-bit LX7 CPU, frequency up to 240MHz
2.4 GHz Wi-Fi, EEE 802.11 b/g/n-compliant
Bluetooth, LE: Bluetooth 5, Bluetooth mesh
16 MB (64Mbit) SPI Flash
384 KB ROM
512 KB SRAM
8 MB SPI PSRAM
16 KB SRAM in RTC
Communication Interfaces
2 x I2C
2 x I2S
4 x SPI
3 x UART
1 x USB OTG
Security
4096 bit OTP
AES, SHA, RSA, ECC and RNG
Secure boott, Flash encryption, Digital signature, HMAC module
Dual Type-C USB connectors
Reset and User/Firmware buttons
RGB WS2812 User LED
Power LED
Virtual USB port provided by CP2102 for debugging and firmware upgrade
Supply Voltage: 5V via USB
Circuit Voltage: 3.0 to 3.6V Circuit Operation
Dimensions: 50.1 x 13mm
