| Feature | Specification |
|---|---|
| Wire Size | 0.5–1.5 mm² (AWG 22–16) |
| Ampacity | Up to 19 A |
| Screw Compatibility | ANSI #8 (#8 screw diameter) |
| Barrel Variants | S (6.4 mm), M (7.2 mm), L (8.1 mm) |
| Material | Tin-plated copper, PVC/nylon insulation |
| Temperature Rating | PVC: –40 °C to +105 °C; Tin: up to 160 °C |

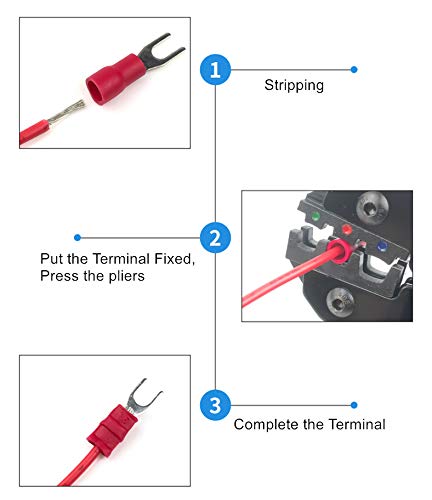

| Crimping Method | Cold-pressed |

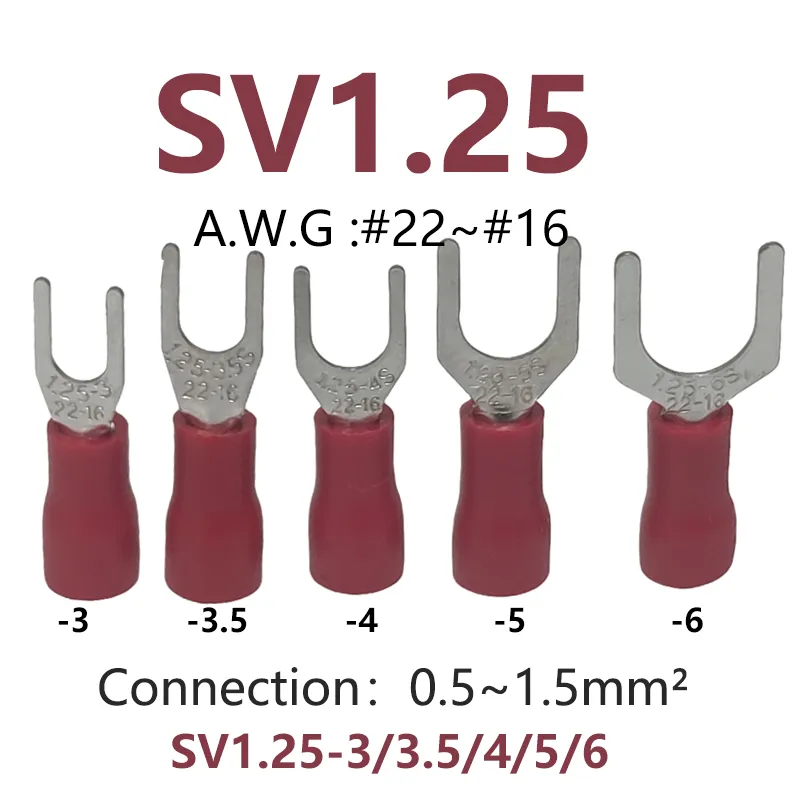

SV1.25‑4 Insulated Fork Terminal Datasheet Highlights
I collected specifications from reliable industrial sources to give you a detailed datasheet overview of the SV1.25‑4 U‑Type (fork) insulated terminal:
Dimensions & Variants (from Nvolt)
-
Wire Range: 0.5–1.5 mm² (AWG 22–16)
-
Stud (ANSI) Size: #8
-
Dimensions (mm):
-
B (fork width?): 4.3
-
L (overall length): 21.2
-
F (fork opening width): 6.5
-
-
Available in three barrel-length variants:
-
S (Short): L = 6.4 mm
-
M (Medium): L = 7.2 m
-
Technical Specifications & Materials (from Hont Electrical)
-
Maximum Current: Iₘₐₓ = 19 A
