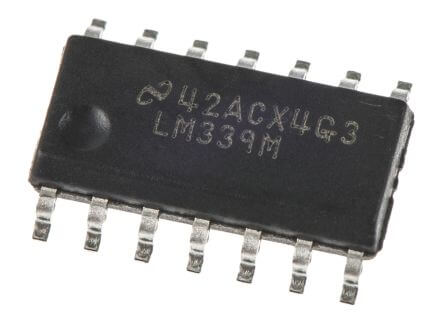

Lm339 Quad Comparator SMD in Pakistan

Description Additional information Reviews (0)
Description
These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Features of Lm339 Quad Comparator SMD:
Type:Differential
Number of Elements:4
Output Type:CMOS, MOS, Open-Collector, TTL
Voltage – Supply, Single/Dual (±):2 V ~ 36 V, ±1 V ~ 15 V
Voltage – Input Offset (Max):5mV @ 30V
Current – Output (Typ):20mA
Current – Quiescent (Max):2.5mA
Operating Temperature:0°C ~ 70°C
Current – Input Bias (Max):0.25µA @ 5V
Mounting Type: Surface Mount
Supplier Device Package:14-SOIC
Base Part Number:LM339
Package Includes:
1 x Lm339 Quad Comparator SMD
