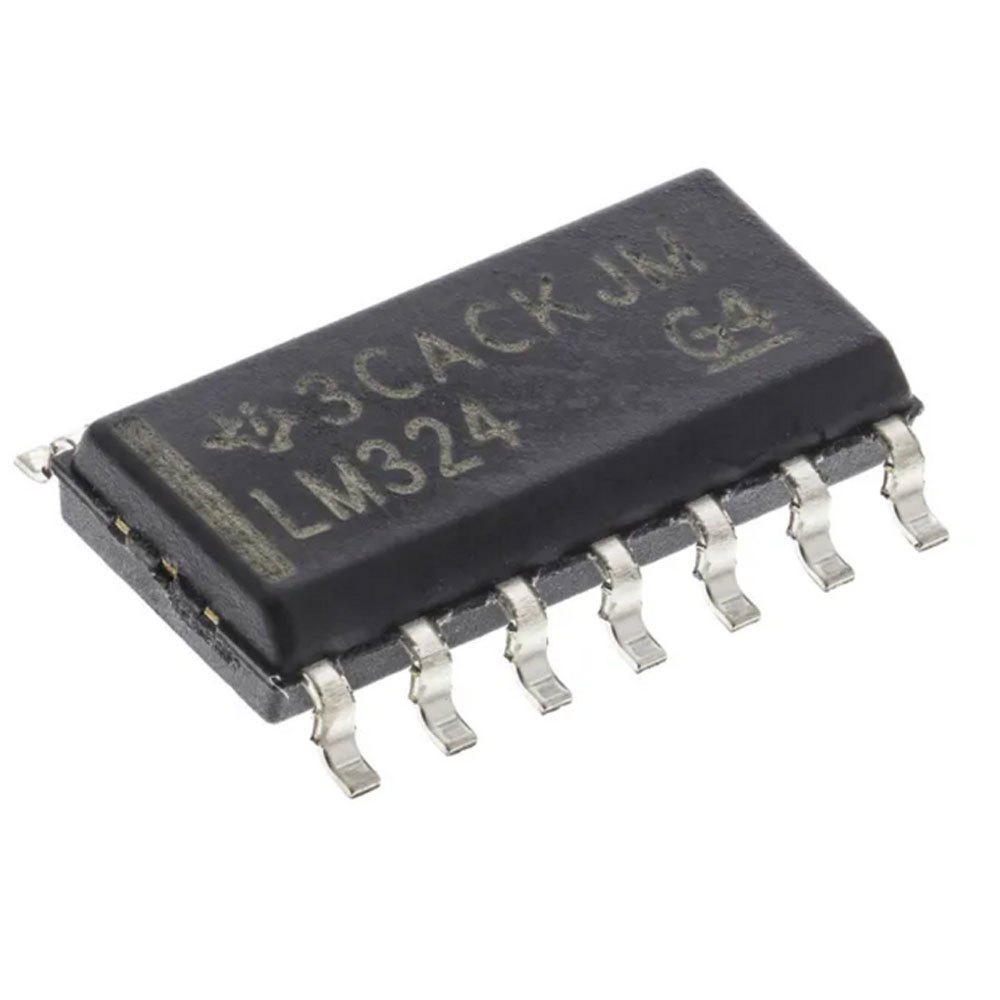

LM324 SMD IC, For Inverter Price in Pakistan

Usage/Application
Inverter
Mounting Type
SMD
Part Number
LM324
Type
Leaded
Color
Black
Minimum Order Quantity
10 Piece
Description
LM324 SMD IC

The LM324 series consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM324 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

Characteristics:-

• In the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage

• The unity gain cross frequency is temperature compensated

• The input bias current is also temperature compensated

Advantages:-

• Eliminates need for dual supplies

• Four internally compensated op amps in a single package

• Allows directly sensing near GND and VOUT also goes to GND

• Compatible with all forms of logic

• Power drain suitable for battery operation

Features:-

• Internally frequency compensated for unity gain

• Large DC voltage gain 100 dB

• Wide bandwidth (unity gain) 1 MHz (temperature compensated)

• Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V

• Very low supply current drain (700 µA) — essentially independent of supply voltage

• Low input biasing current 45 nA (temperature compensated)

• Low input offset voltage 2 mV and offset current: 5 nA

• Input common-mode voltage range includes ground

• Differential input voltage range equal to the power supply voltage

• Large output voltage swing 0V to V+ − 1.5V

All the products supplied by Climax Components Inc, are genuine and original. We offer 7 days replacement warranty in case of manufacturing defects

Contains 4 independent High Gain Opamps
Wide Input Supply Range: 3V to 32V
Low Input Bias And offset parameters
Differential Input Voltage Range = Max Rated Supply Voltage
Common Mode Voltage Range: 0V to Vcc – 2
