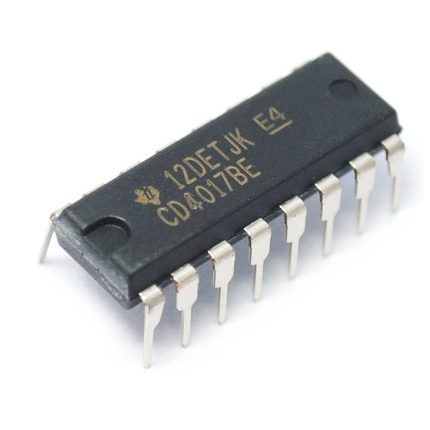

Cd4017 Ic In Pakistan
Original price was: ₨ 90.₨ 65Current price is: ₨ 65.
CD4023 4023 Triple 3-Input NAND Gates DIP-14
Original price was: ₨ 120.₨ 90Current price is: ₨ 90.
Cd4022 Divide By 8 Counter/divider Ic
Original price was: ₨ 165.₨ 135Current price is: ₨ 135.
The CD4022 is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit. These counters are cleared to their zero count by a logical ‘‘1’’ on their reset line. These counters are advanced on the positive edge of the clock signal when the clock enable signal is in the logical ‘‘0’’ state.
Technical Specification:
Logic Family: CD4000
Series: CD4022B
Function: Counter
Product Category: Counter ICs
Counter Type: Decade
Number of Bits: 10 bit
Counting Sequence: Up
Operating Supply Voltage: 3 ~ 18V
Features:
4-stage Divide-by-8 Johnson Counter with 8 Decoded Outputs and a Carry
Medium Speed Operation up to 5MHz
Wide Operating Voltage Range
Low Power CMOS
Applications:
Automotive
Instrumentation
Medical electronics
Alarm systems
Industrial electronics
Remote metering
