Impedance
5O Ohm
Insertion Loss
0.20 dB
Operating Frequency Range
DC-2GHz
Body
Brass
Contact
Brass
Insulator
PTFE
Outer Contact
Brass
Minimum Order Quantity
50 Piece
Established in 2012, Signity RF Solutions is one of the distinguished business firm involved in manufacturing, trading, importing and supplying of GPS And GSM Antennas, Radio Frequency Antennas, Patch Antennas, Whip Antennas and many more. We also providing services of Antennas Installation Services. Fabricated with supremacy, these presented products are immensely credited in the industry due to their longer life, perfect designs and durable finish standards.. Valued among our patrons, these products could be acquired from us at pocket-friendly rates. Additionally, to eradicate all the faults present in the consignment, these are well-examined on assorted restrictions of quality before shipment. We import from countries like China
-15%
0%
ADC0804 Converter 8-Bit Analog to Digital Price in Pakistan
Original price was: ₨ 1450.₨ 1199Current price is: ₨ 1199.

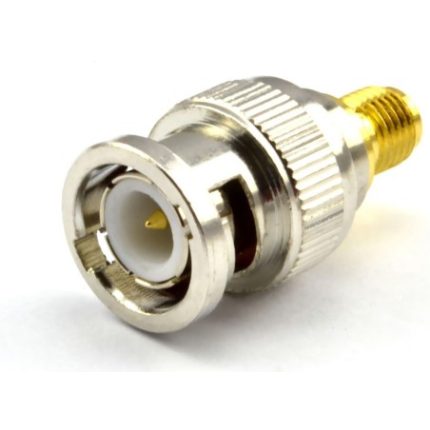

SMA Female to BNC Male Connector Price in Pakistan
Original price was: ₨ 650.₨ 550Current price is: ₨ 550.

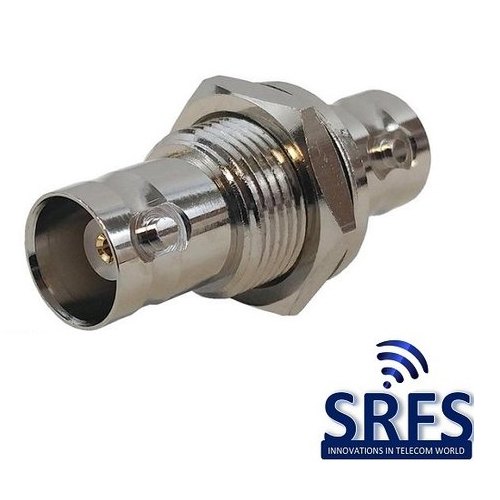

BNC Female To Female Bulkhead Adapter Price in Pakistan
Original price was: ₨ 650.₨ 550Current price is: ₨ 550.
Description
Reviews (0)
Shipping & Delivery
Related products
SMA Male Connector for RG174, RG316, LMR100 RF Coaxial Cable Price in Pakistan
SMA Male Crimp Connector
Key Features
SMA plug
Gold plated pin, body & ferrule (not pictured)
Suits 2.5mm diameter cables such as RG174, RG316, and LMR100
Usage
A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna
Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose
Most crimp connectors consist of three components - the connector body, pin/socket, and crimping ferrule
Terminating a coaxial cable with a crimp connector requires three tools - a wire stripper/cutter, soldering iron, and hex crimp
You can find instructional videos on crimping most connectors on YouTube.
Crimp Hex Die Sizing
RG316/RG174 - 0.128"
RG58/LMR195 - 0.213"
LMR400/RG8 - 0.429"
SMA Male Plug Crimp RF Connector for RG58 RG142 LMR195 Coaxial Cable Price in Pakistan
SMA male connector; Termination: cable-crimp; Impedance: 50 ohms
Well built: Connectors made from gold-plated brass for durability and secure connection
Compatible with coax cable RG58, RG141, RG303, LMR195, Belden 9907, Belden B7806A
Application:great to make your own cable assemblies for 50ohm RF uses including 4G LTE antennas, routers, hand-held radio, WiFi antenna systems, etc
SMA MALE RG58 PRICE IN PAKISTAN
roduct details of SMA Male RG58 RG316 RG174 Crimp Connector
SMA connector series product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.
Specification of SMA Male RG58 RG316 RG174 Crimp Connector
Type: RF connector SMA
Body plating: gold plated
Body style: straight
Mounting: Crimp
