SMA Male Connector for RG174, RG316, LMR100 RF Coaxial Cable Price in Pakistan

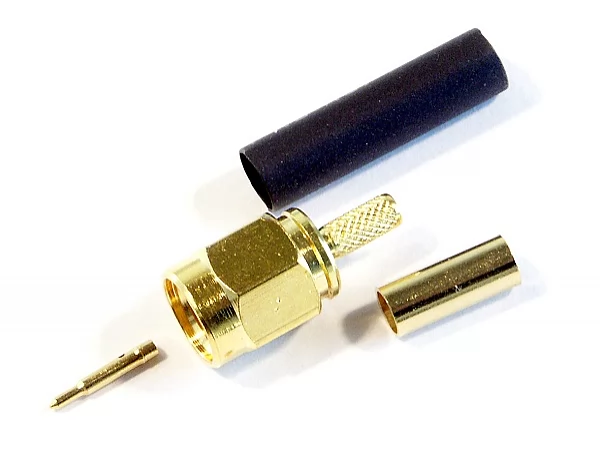

SMA Male Crimp Connector

Key Features

SMA plug

Gold plated pin, body & ferrule (not pictured)

Suits 2.5mm diameter cables such as RG174, RG316, and LMR100

Usage

A crimp connector is used to terminate the end of a coaxial cable to allow connection to an RF device or antenna

Each series of connector differs by method of connection, size, and electrical properties, allowing a technician to select a connector to best match the intended purpose

Most crimp connectors consist of three components – the connector body, pin/socket, and crimping ferrule

Terminating a coaxial cable with a crimp connector requires three tools – a wire stripper/cutter, soldering iron, and hex crimp

You can find instructional videos on crimping most connectors on YouTube.

Crimp Hex Die Sizing

RG316/RG174 – 0.128″

RG58/LMR195 – 0.213″

LMR400/RG8 – 0.429″
