74LS85 IC is a member of the 74XXYY IC series. The 74LS85 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The 74LS85 is a 4-Bit Magnitude Comparator which compares two 4-bit words (A, B), each word having four Parallel Inputs (A0–A3, B0–B3); A3, B3 being the most significant inputs (MS
-25%
74LS83 4-bit Binary Full Adder Price in Pakistan
Original price was: ₨ 120.₨ 80Current price is: ₨ 80.
74LS86N DIP-14 Quad Exclusive-or Gate Price in Pakistan
Original price was: ₨ 75.₨ 55Current price is: ₨ 55.

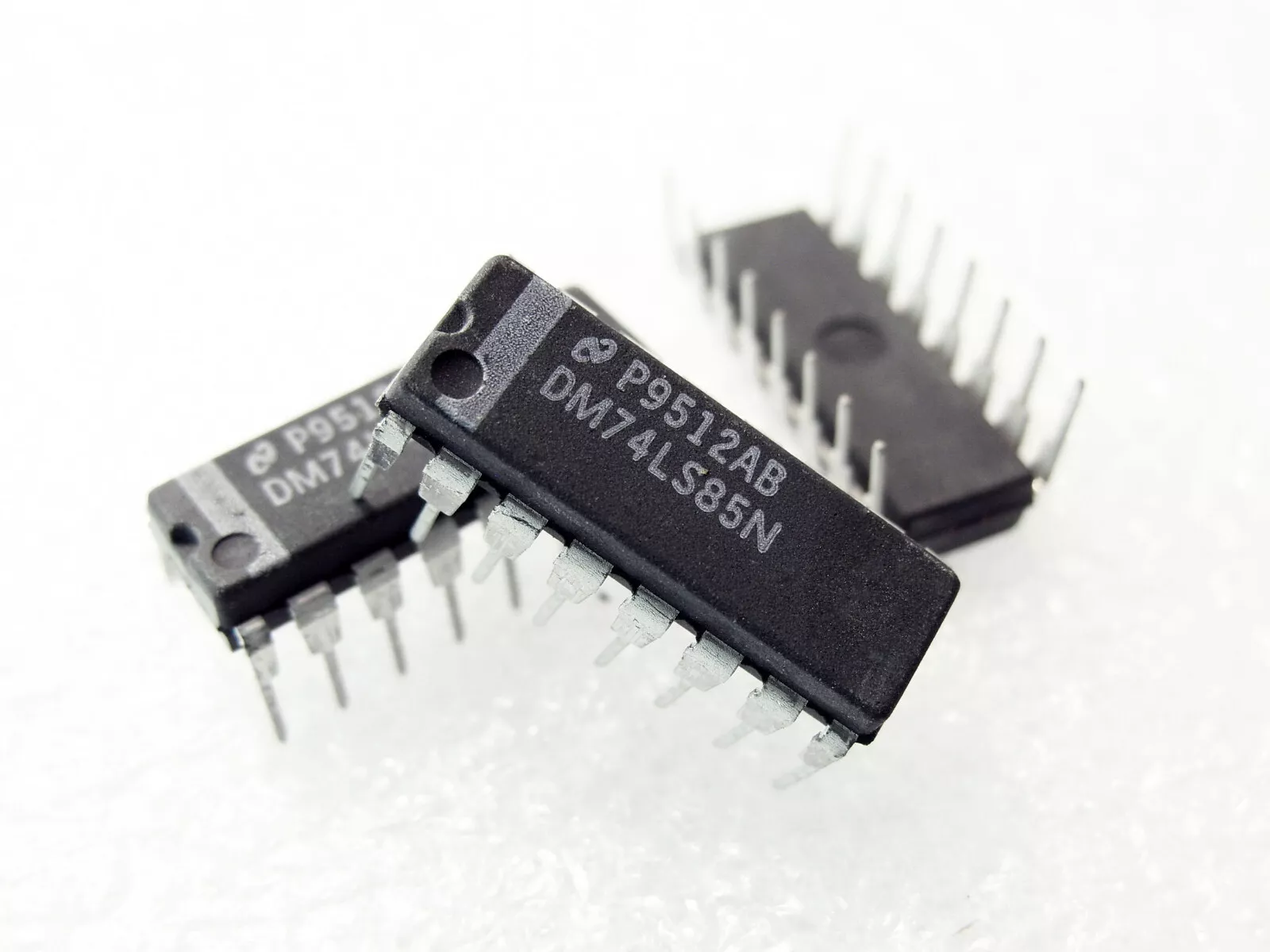

74LS85 4-Bit Magnitude Comparator IC DIP-16 Price in Pakistan
Original price was: ₨ 120.₨ 90Current price is: ₨ 90.
