Electrical Specification
Working voltage range: 4.8-8.4V
No load speed：0.32sec/60°(4.8V), 0.22sec/60°(8.4V)
Runnig current：40mA(4.8V), 200mA(8.4V)
Peak stall torque: 32.7kg.cm(4.8V), 35.2kg.cm(8.4V)
Stall current: 2800mA±10{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}(4.8V), 3800mA±10{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}(8.4V)
Mechanical Specification
Size: 40.0*20.5*40.5mm
Weight: 56g±5{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}
Gear type: 5 Metal
Limit angle: 180°
Bearing: 2BB
Horn type: Plastic, POM
Case: Engineering plastics(PBT)+Aluminum alloy
Connector wire: 320mm±5mm
Motor: Carbon brush motor
Splash water resistance: yes
Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180°±3°(when 500～2500usec)
Dead band width: 5 usec
Rotating direction: Counterclockwise (when 1000～2000usec)
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
-26%
0%
30kg Servo moter TD-8130MG Waterproof Price in Pakistan
Original price was: ₨ 5500.₨ 4250Current price is: ₨ 4250.
MAX7219 Dot LED Matrix 4×1 Module MCU Control Unit Price in Pakistan
Original price was: ₨ 1300.₨ 1200Current price is: ₨ 1200.

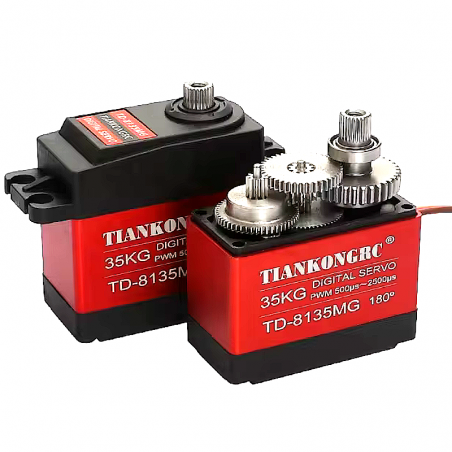

35KG SERVO Metal 180º TD-8135MG Price in Pakistan
