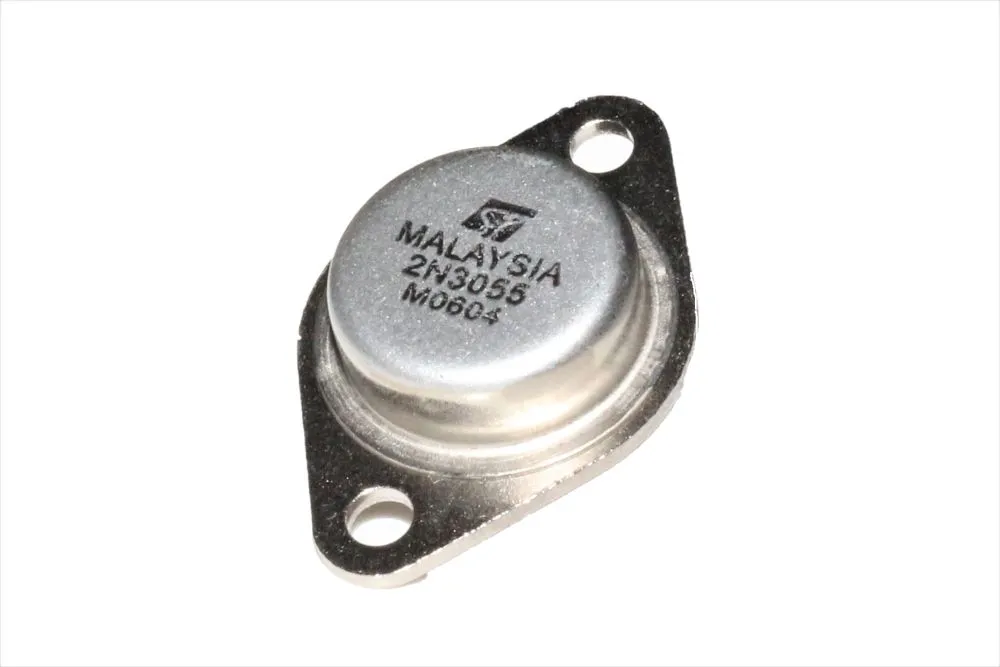

The 2N3055 NPN transistor can use to build an amplifier. 2N3055 is a popular choice for audio amplifiers because it can provide high power output without overheating.
The 2N3055 is a silicon NPN power transistor intended for general purpose applications. 2N3055 NPN Transistor is a popular transistor for use in medium-power and high-power circuits, such as audio power amplifiers, DC to AC inverters, and low-frequency power converters.
If you are using a 2N3055 transistor in an application where high power dissipation not required, you may be able to get away with using a smaller heat sink or no heat sink at all. However, it is important to check the transistor’s datasheet to make sure that it can dissipate the amount of heat that will be generated in your application.
The 2N3055 has a maximum collector current of 15 amperes and a maximum collector-emitter voltage of 60 volts. It can dissipate up to 115 watts of power. The transistor has a relatively low collector-emitter saturation voltage, making it suitable for use in switching applications.
This 3055 transistor typically use in applications where high power dissipation require, such as audio power amplifiers, DC to AC inverters, and low-frequency power converters. In these applications, the transistor is typically mounted on a heat sink to help dissipate the heat.
The gain of the amplifier is determined by the value of the resistor and the capacitor. The higher the value of the resistor, the lower the gain of the amplifier. The higher the value of the capacitor, the higher the gain of the amplifier.
Features : –
The minimum input voltage for a 2N3055 transistor to turn on is typically between 0.7 and 1.0 volts. This means that the base-emitter voltage (VBE) must be greater than this value in order for the transistor to conduct current.
The 2N3055 transistor is a popular transistor for use in medium-power and high-power circuits. It has a number of benefits, including:
High current output
Low cost
Wide availability
Reliable and durable
Easy to use
High voltage
Low saturation voltage
High gain
