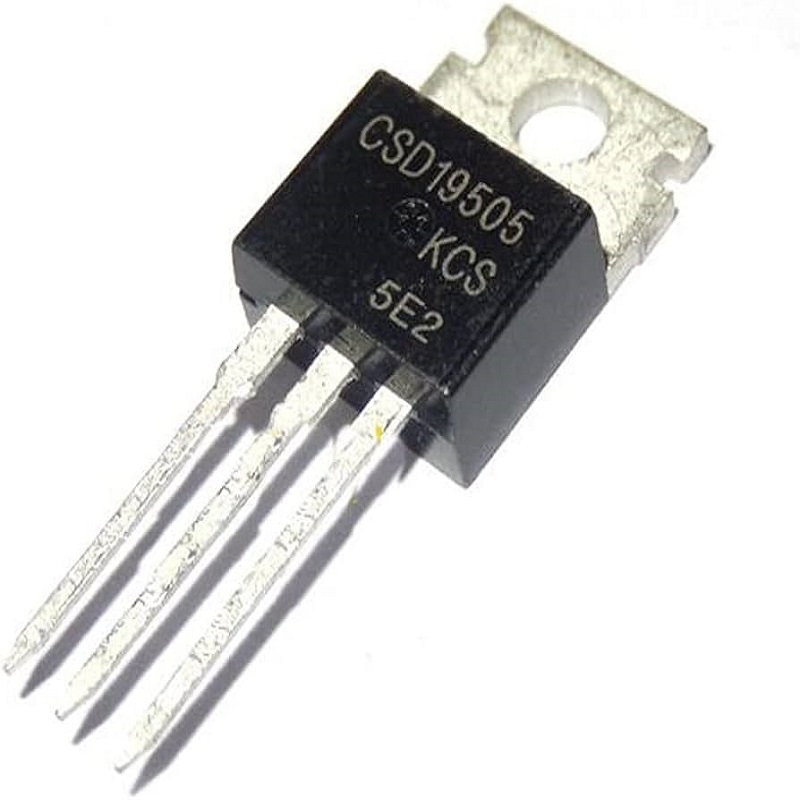

CSD19505 N-Channel MOSFET TO-220

Type Designator: CSD19505KCS
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pdⓘ – Maximum Power Dissipation: 300 W
|Vds|ⓘ – Maximum Drain-Source Voltage: 80 V
|Vgs|ⓘ – Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ – Maximum Gate-Threshold Voltage: 3.2 V
|Id|ⓘ – Maximum Drain Current: 150 A
Tjⓘ – Maximum Junction Temperature: 175 °C
Qgⓘ – Total Gate Charge: 76 nC
trⓘ – Rise Time: 16 nS
Cossⓘ – Output Capacitance: 1600 pF
Rdsⓘ – Maximum Drain-Source On-State Resistance: 0.0031 Ohm
Package: TO-220
