Condition New
Connection Type Female
Application Electrical Adaptor
Certification CE Certified, ISI Certified
Gender Female Bulkhead
Feature Easy To Connect, Four Times Stronger, Proper Working, Superior Finish, Water Proof
Type Sma Connector
Country of Origin Pakistan
Product Connector
Mounting PCB Mount
Dimension Threading Length: 18mm
Orientation Straight
Material & Plating Brass, Gold
Product Code ET-SFS-BH-18MSL
Payment Terms L/C, D/A, D/P, T/T

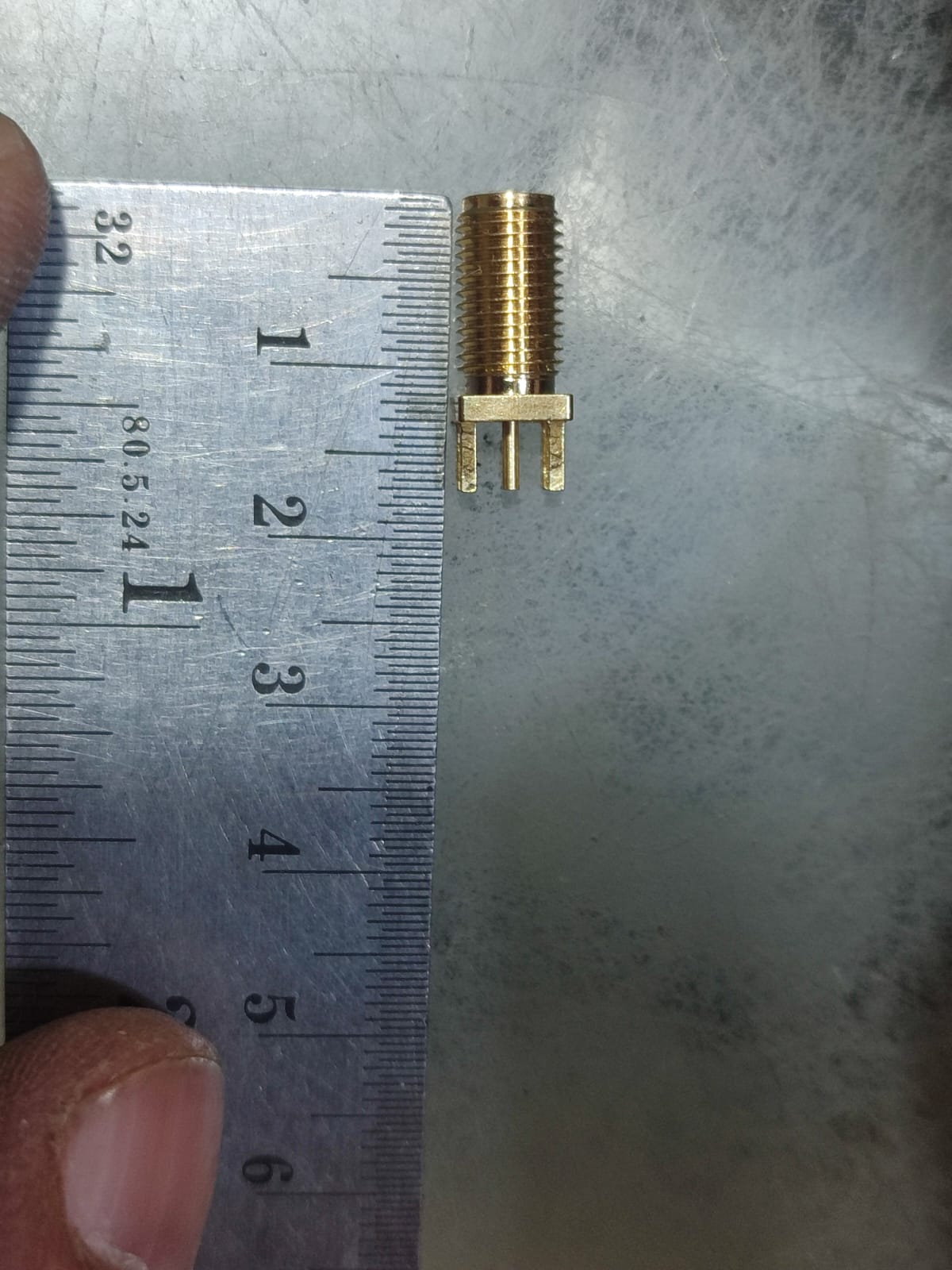

The SMA (SubMiniature version A) female bulkhead straight PCB mount connector with an 18mm dimension is typically used for RF (radio frequency) applications. Here’s a quick rundown of what you might need to know:
Connector Type: SMA (SubMiniature version A) is a standard for coaxial connectors. The female connector has a threaded coupling mechanism for secure connections.
Bulkhead: This indicates that the connector is designed to be mounted through a panel or bulkhead, with the connector part extending through the panel.
Straight PCB Mount: This means that the connector is intended to be mounted directly onto a printed circuit board (PCB) with a straight orientation.
18mm Dimension: This could refer to the overall length of the connector, the diameter of the mounting hole, or a specific dimension relevant to the connector’s design. It’s essential to confirm this dimension for compatibility with your PCB or panel.
When selecting this connector, make sure to check the following specifications to ensure compatibility with your application:
Frequency Range: Make sure it supports the frequency range of your RF application.
Impedance: Typically, SMA connectors are 50 ohms, but confirm this to match your system’s requirements.
Material and Finish: Ensure that the connector materials and plating are suitable for your application’s environmental and mechanical requirements.
You can find these connectors from various electronic component suppliers like Digi-Key, Mouser, or RS Components. If you have specific requirements or need more detailed information, the datasheet for the connector would provide all the technical details.
