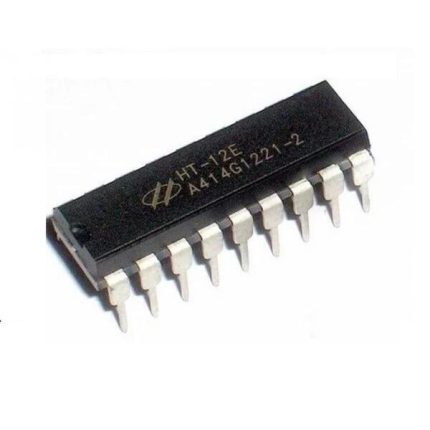

Rf Encoder Ic Ht12e 18 Dip ₨ 200 Original price was: ₨ 200.₨ 150Current price is: ₨ 150.

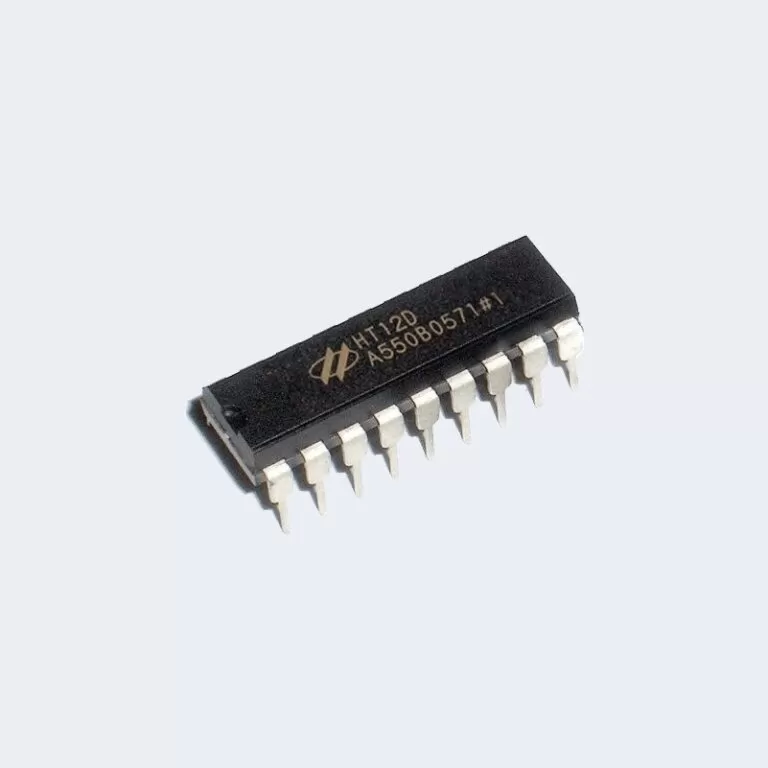

Rf Decoder Ic Ht12d 18 Pin Dip

₨ 180 Original price was: ₨ 180.₨ 150Current price is: ₨ 150.

Features of 18 Dip HT12D RF Decoder IC:
Low power and high noise immunity CMOS technology
Low standby current and minimum external components
Capable of decoding 12bits of information
Binary address setting
Valid transmission indicator
Specifications of 18 Dip HT12D RF Decoder IC:
8 address bits and 4 data bits
Operating voltage range from 2.4V to 12V
The built-in oscillator needs only 5% resistor
Oscillator frequency of 150KHz
Operating temperature range from -20°C to 75°C
Applications:
Used to convert Parallel 4-bit data to series data
Highly useful in wireless communication projects involving RF or IR
Remote controlled systems like garage doors, Car alarm system, Car door controls etc.
Can be used in Home automation for short-range remote switching
Safety systems like Burglar alarm system, Smoke or Fire alarm system etc

Compare
Add to wishlist
Category: IC,S
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

18 Dip HT12D RF Decoder IC is a decoder integrated circuit that belongs to 212 series of decoders. 18 Dip HT12D RF Decoder IC is mainly used for remote control system applications, like burglar alarm, car door controller, security system etc. It is mainly provided to interface RF and infrared circuits. They are paired with 212 series of encoders. The chosen pair of encoder/decoder should have the same number of addresses and data format.
In simple terms, HT12D converts the serial input into parallel outputs. It decodes the serial addresses and data received by, say, an RF receiver, into parallel data and sends them to output data pins. The serial input data is compared with the local addresses three times continuously. The input data code is decoded when no error or unmatched codes are found. A valid transmission in indicated by a high signal at VT pin.
HT12D is capable of decoding 12 bits, of which 8 are address bits and 4 are data bits. The data on 4-bit latch type output pins remain unchanged until new is received.
