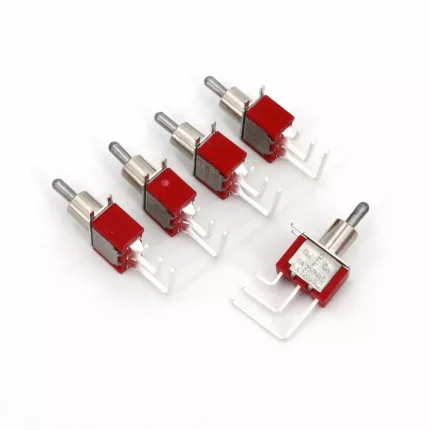

M2026SS1W01 Spring Loaded Toggle Switch Price in Pakistan

Manufacturer: NKK Switches
Product Category: Toggle Switches
Delivery Restrictions:
Mouser does not sell this product in your region.
RoHS:
REACH – SVHC:
Illuminated: Non-Illuminated
Contact Form: SP3T
Switch Function: (ON) – ON – (ON)
Mounting Style: Panel Mount
Termination Style: Solder Lug
Current Rating: 3 A, 6 A
Voltage Rating AC: 125 VAC, 250 VAC
Voltage Rating DC: 30 VDC
Bushing Size: 1/4-40
Actuator: Bat
Terminal Seal: Epoxy
Contact Plating: Silver
Series: M
Actuator Style: Bat
Brand: NKK Switches
Color: Multi Color
Contact Material: Silver
Flammability Rating: UL 94 V-0
Housing Material: Brass
Life: 25000 Cycle
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 30 C
Mounting Angle: Vertical
Product Type: Toggle Switches
100
Subcategory: Switches
Type: Miniature toggles
Part # Aliases: M-20208NSS1
Unit Weight: 8,887 g
