LM2596 Dc To Dc Buck Converter Step Down Module Price in Pakistan

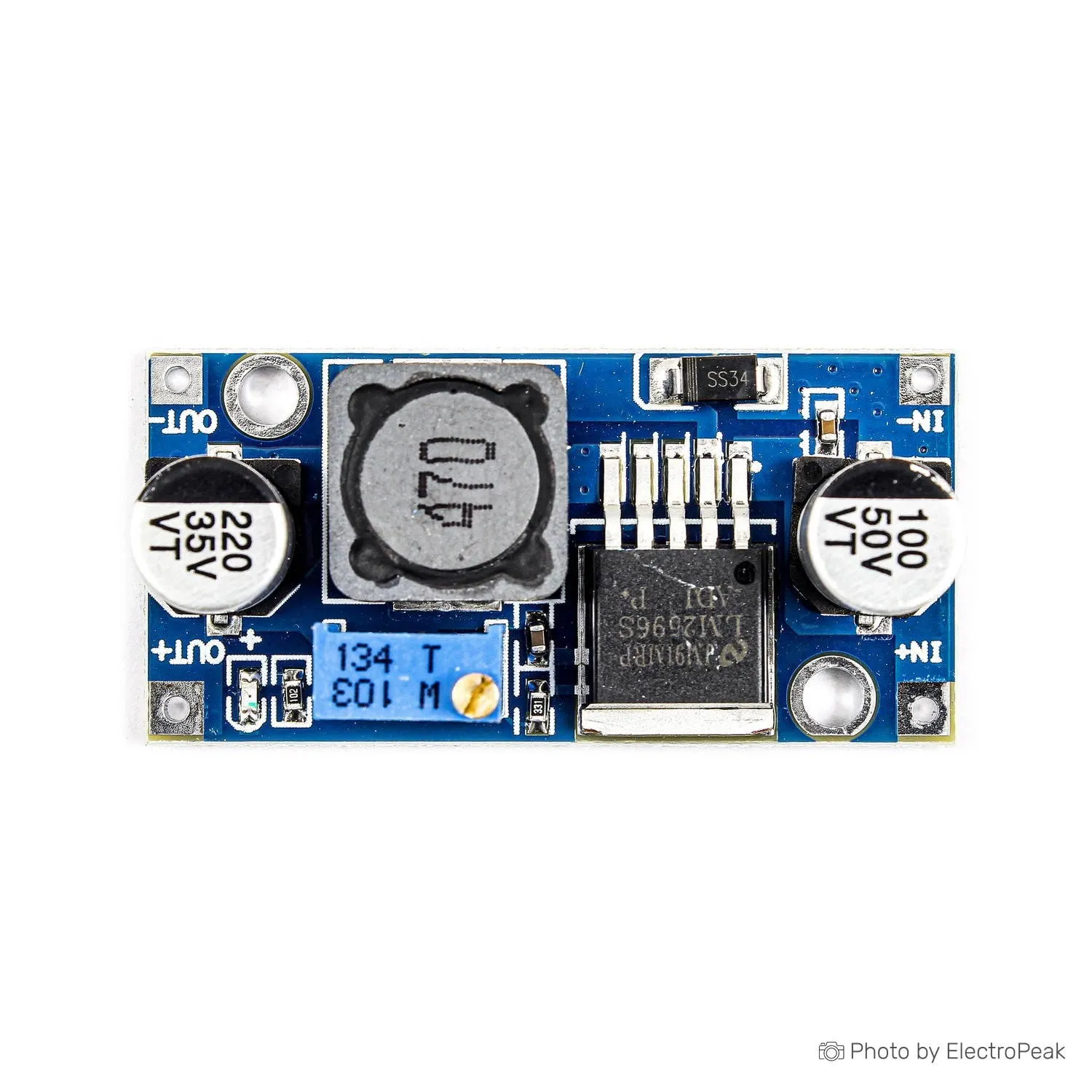

LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators

Features Of DC-DC LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:
Non-isolated step-down (BUCK) switching regulator.
Short circuit protection: Current limiting, self-recovery
Potentiometer adjustment direction
Non-synchronous rectification
Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:
Model name: DC-DC LM2596S buck module
Input voltage:3.2V~46V (recommended for use in 40V)
Output voltage:1.25V~35V
Output current:3A (maximum)
Conversion efficiency:92{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428} (highest)
Output ripple:<30mV Switching frequency:65KHz Working temperature:-45 ~ +85 Dimension:21mm * 43mm * 14mm (length * width * height) Package Include: 1x DC To Dc Buck Converter Step Down Module Power Supply LM2596 Best Online shopping website electronicstore.pk for DC To Dc Buck Converter Step Down Module Power Supply LM2596 in cheap price in Lahore Islamabad Karachi Faislabad Quetta Sukkur Multan Rawalpindi Peshawar and all over Pakistan.
