Technical parameters of Relay electromagnetic JZX-140FF, coil 12VDC, 250VAC/5A, DPDT-2NO + 2NC
Coil voltage:
12 [VDC]
Contacts maximum current:
5 [A]
Socket rated voltage:
250 [VAC]
Contacts configuration:
DPDT
Sockets:
2NO+2NC
Number of leads:
8 [leads]
Mounting:
THT
Operating temperature:
-40~70 [°C]
Model:
JZX-140FF
Dimensions:
28x26x13 [mm]
Relay type:
electromagnetic
Coil resistance:
270 [ohm]
-19%

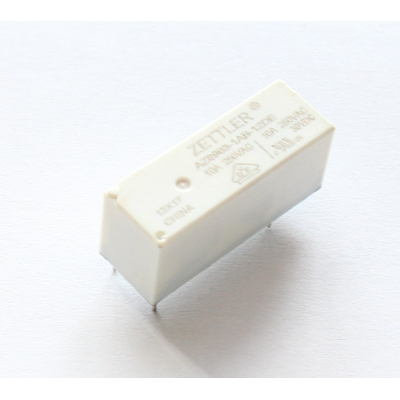

AZ0963-1AB-12DE 12V 5PIN RELAY
Original price was: ₨ 750.₨ 650Current price is: ₨ 650.

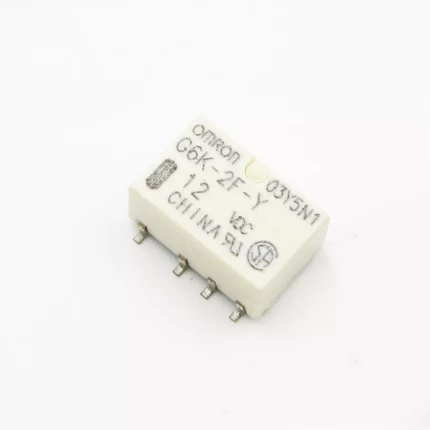

G6K-2F-Y-12VDC Signal Relay 8PIN SMD
Original price was: ₨ 650.₨ 575Current price is: ₨ 575.
JZX-140FF 12V 6PIN RELAY
Original price was: ₨ 400.₨ 325Current price is: ₨ 325.
Description
