Product Attribute Attribute Value Select Attribute
Manufacturer: Omron
Product Category: Low Signal Relays – PCB
RoHS:
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Product: Low Profile Relays
Type: Miniature
Coil Voltage: 12 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Rating: 300 mA, 1 A
Contact Current Rating: 1 A
Maximum Switching Current: 1 A
Coil Current: 9.1 mA
Coil Type: Non-Latching
Power Consumption: 100 mW
Contact Termination: Gull Wing Lead
Series: G6K
Brand: Omron Electronics
Contact Form: DPDT (2 Form C)
Mounting Style: SMD/SMT
Product Type: PCB Relays
1800
Subcategory: Relays
Part # Aliases: G6K2FYTR12DCBYOMZ G6K-2F-Y-TRDC12BYOMR G6K2FYTR12DCBYOMA G6K2FYTR12DCBYOMI G6K2FYTRDC12BYOMR G6K-2F-Y-TRDC12 G6K2FYTRDC12NC G6K2FYTR12DC G6K2FYTR12DCBYOM G6K2FYTRDC12
Unit Weight: 700 mg
-12%
0%
12V 6PIN 8amp RELAY Price in Pakistan
Original price was: ₨ 400.₨ 325Current price is: ₨ 325.

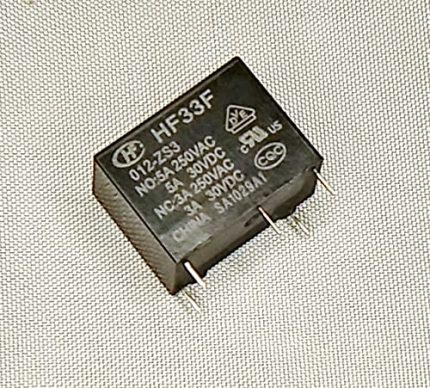

HF33F 012-ZS3 HF33F-012-ZS3 Relay - 12V - 5 Pin - 5A - New
Original price was: ₨ 350.₨ 300Current price is: ₨ 300.

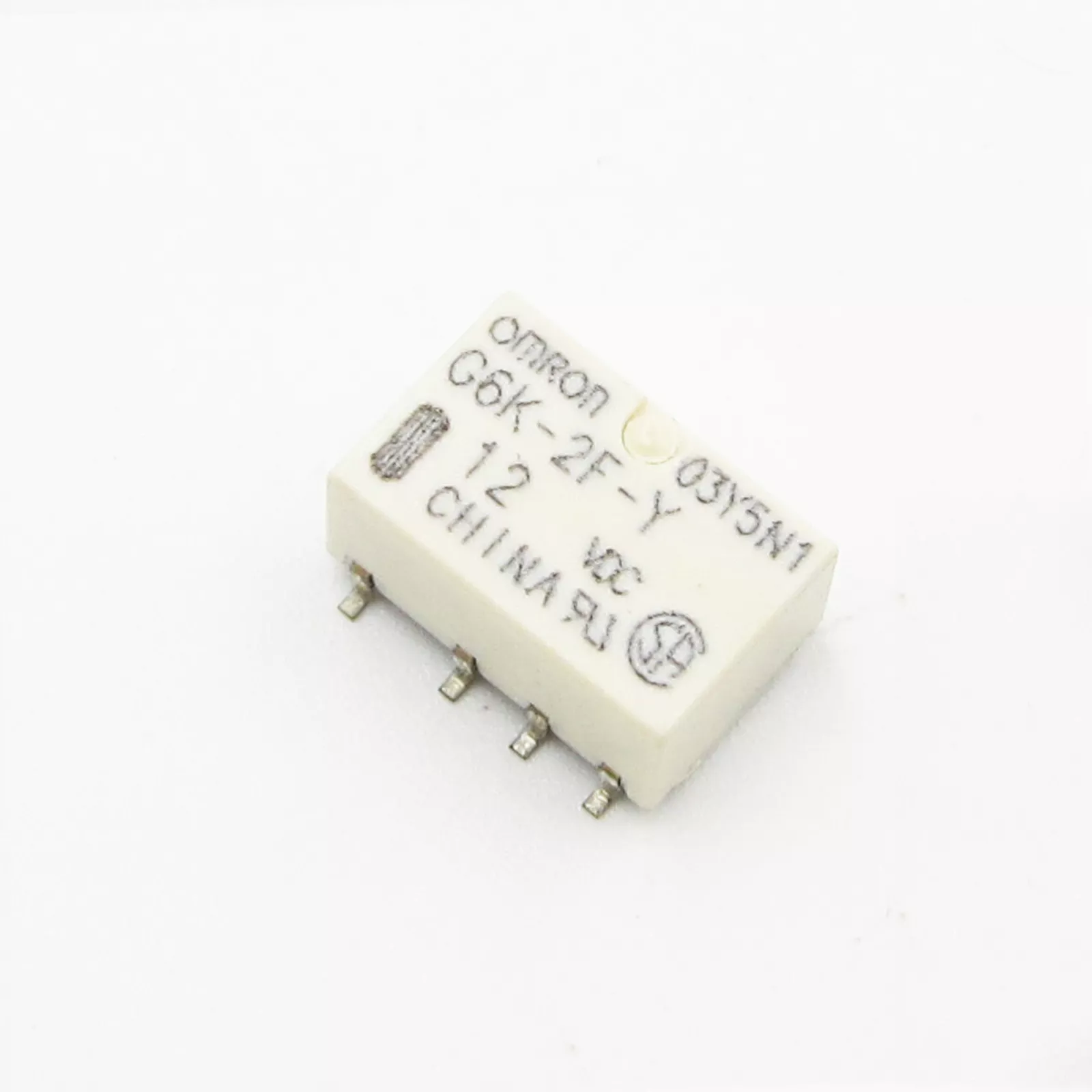

G6K-2F-Y-12VDC Signal Relay 8PIN SMD
Original price was: ₨ 650.₨ 575Current price is: ₨ 575.
