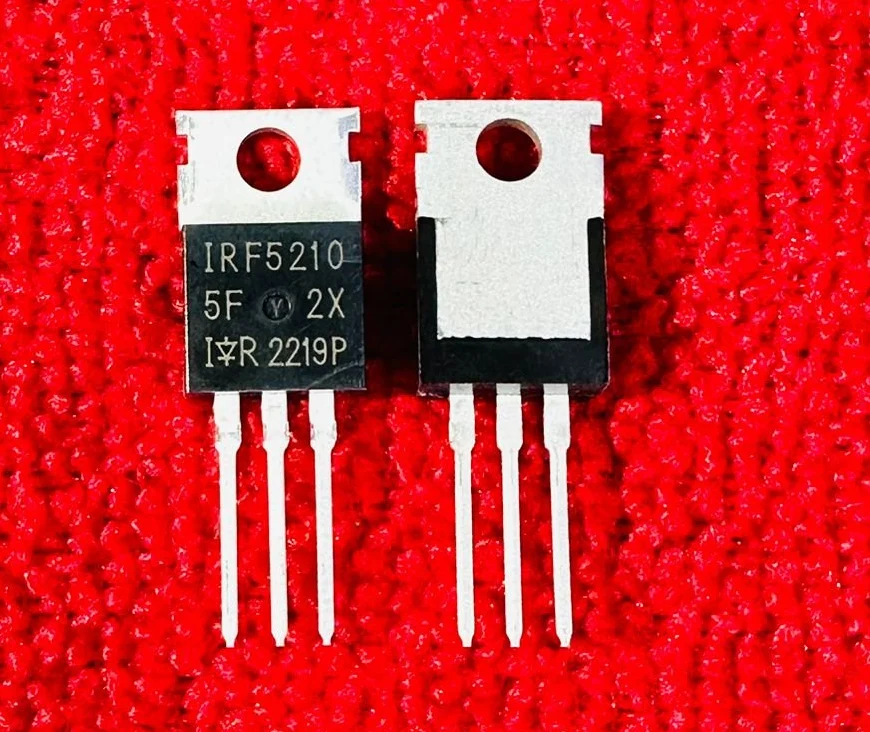

IRF5210 MOSFET NEW

Type Designator: IRF5210
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Pdⓘ – Maximum Power Dissipation: 200 W
|Vds|ⓘ – Maximum Drain-Source Voltage: 100 V
|Vgs|ⓘ – Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ – Maximum Gate-Threshold Voltage: 4 V
|Id|ⓘ – Maximum Drain Current: 40 A
Tjⓘ – Maximum Junction Temperature: 175 °C
Qgⓘ – Total Gate Charge: 180(max) nC
trⓘ – Rise Time: 86 nS
Cossⓘ – Output Capacitance: 790 pF
Rdsⓘ – Maximum Drain-Source On-State Resistance: 0.06 Ohm
Package: TO220AB
