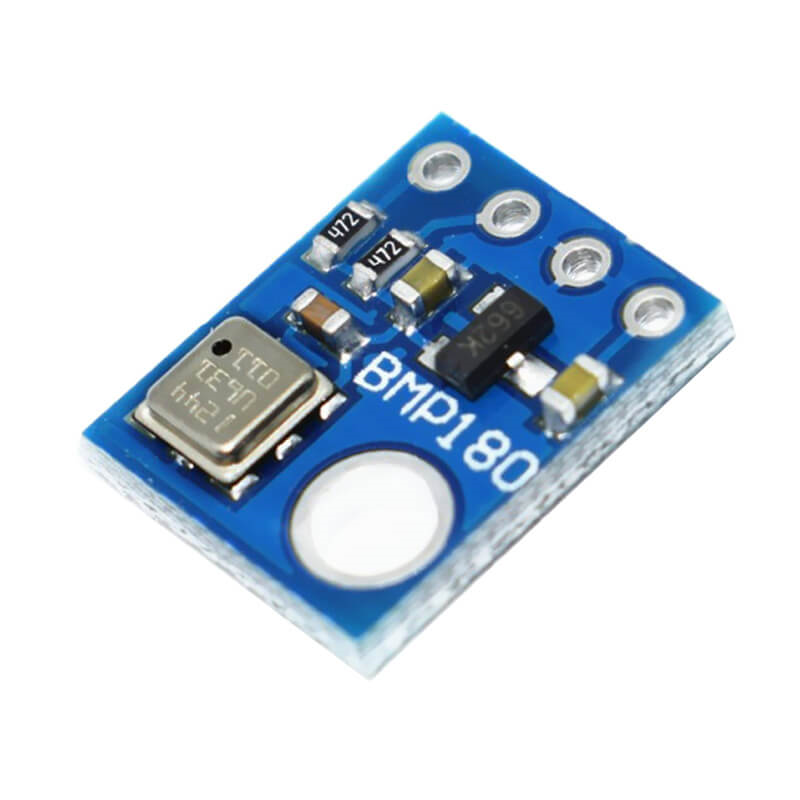

BMP180 Digital Barometric Pressure Sensor Board Module Arduino Compatible Measuring the absolute pressure of the environment using a digital barometer such as this has some interesting applications. By converting the pressure measured into altitude, you have a reliable sensor for determining the height of your robot, plane or projectile! Using a sensor as capable as the BMP180 you can achieve an accuracy of 1m, with the noise of only 17cm in ultra-high-resolution noise.
The device will operate at the only 0.3uA meaning low current draw for battery-powered applications. The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull-ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding. Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation.
-20%

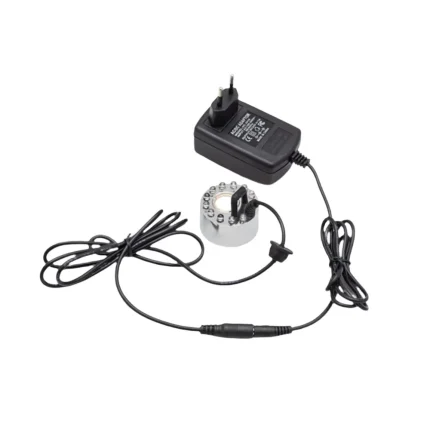

Ultrasonic Humidifier With 24v Adaptor ( LED Colors Mist Maker Fogger Air Purifier for Incubators/Rooms/shades Price in Pakistan
Original price was: ₨ 1650.₨ 1400Current price is: ₨ 1400.

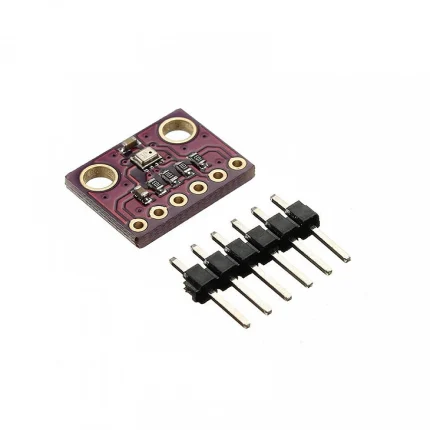

BMP280 Barometric Pressure Sensor Module Price in Pakistan
Original price was: ₨ 220.₨ 200Current price is: ₨ 200.
Bmp180 Barometric Pressure Sensor Module In Pakistan
Original price was: ₨ 250.₨ 200Current price is: ₨ 200.
Description
Reviews (0)
Shipping & Delivery
Related products
Arduino Leonardo Atmega32u Price In Pakistan
It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs); a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything need to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Arduino Mega 2560 R3 In Pakistan
PERATING VOLTAGE: 5V
INPUT VOLTAGE (RECOMMENDED): 7-12V
INPUT VOLTAGE (LIMIT): 6-20V
DIGITAL I/O PINS: 54 (of which 15 provide PWM output)
ANALOG INPUT PINS: 16DC
CURRENT PER I/O PIN20 mADC CURRENT FOR 3.3V PIN: 50 mA
FLASH MEMORY: 256 KB of which 8 KB used by bootloader
SRAM: 8KB
EEPROM: 4 KB
CLOCK SPEED16 MHz
LED_BUILTIN13
LENGTH: 101.52 mm
WIDTH: 53.3 mm
WEIGHT: 37 g
Click Here to Download Open Source Arduino Software
EAGLE FILES IN .ZIP
SCHEMATICS
BOARD SIZE .IN
MQ-4 Methane Natural Gas Sensor Module For Arduino in Pakistan
MQ4 High Sensitivity Gas Methane (CNG) Detector Sensor Module is a simple to use MQ-4 High Sensitivity Gas Methane (CNG) Detector Sensor Module which can sense the presence of Compressed Natural Gas(CNG), methane(CH4), etc in the air. The module uses our MQ-4 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides the interface through standard 4 x 0.1″ header pins. It provides an analog output corresponding to the concentration of the gases in the air and an easy to use digital output. The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas.
Mq135 Air Quality Detector Sensor Module In Pakistan
The MQ 135 Air Quality Detector Sensor Module For Arduino has lower conductivity in clean air. When the target combustible gas exists, the conductivity of the sensor is higher along with the gas concentration rising. Convert change of conductivity to the corresponding output signal of gas concentration. The MQ135 gas sensor has high sensitivity to Ammonia, Sulphide and Benzene steam, also sensitive to smoke and other harmful gases. It is with low cost and suitable for different applications such as harmful gases/smoke detection
Mq3 Alcohol Sensor Detector Gas Sensor Module In Pakistan
MQ3 MQ 3 MQ-3 Alcohol Detector Gas Sensor Module is a simple to use MQ-3 Alcohol Detector Gas Sensor Module which can sense the presence of Alcohol in the air. The module uses our MQ-3 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides an interface through standard 4 x 0.1″ header pins. It provides an analog output corresponding to the concentration of the gas in the air and an easy to use digital output. The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas. Perfect sensing alcohol concentration on your breath just likes common breathalyzer.
mq3 alcohol sensor working
USB to RS485 / USB 2.0 to RS 485 Serial Converter Adapter Price in Pakistan
The USB to RS485 Converter Adapter module support WIN7 XP Vista Linux Mac OS provides an easy-to-use RS485 interface by means of a Virtual Com Port on the user’s system. There are no command structures, whatever is sent to the Virtual Comm Port is automatically converted to RS485 and vice versa. The module is completely self-powered from the USB bus. Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play. It shows up as a serial/com port and is accessible from applications or hyper-terminal.
