0.5 A Minimum Peak Output
Current
15 kV/µs Minimum Common
Mode Rejection (CMR) at
VCM = 1500 V
1.0 V Maximum Low Level
Output Voltage (VOL)
Eliminates Need for
Negative Gate Drive
ICC = 5 mA Maximum Supply
Current
Under Voltage Lock-Out
Protection (UVLO) with
Hysteresis
Wide Operating VCC Range:
15 to 30 Volts
500 ns Maximum Switching
Speeds
Industrial Temperature
Range: -40°C to 100°C
Safety and Regulatory
Approval: UL Recognized
2500 Vrms for 1 min. per
UL1577
VDE 0884 Approved with VIORM = 630 Vpeak (Option 060 only)
CSA Approved
-13%
3mm Heat Shrink Sleeve 1 meter Price in Pakistan
Original price was: ₨ 25.₨ 20Current price is: ₨ 20.
A3120 IC HCPL3120 SMD Driver Price in Pakistan
Original price was: ₨ 180.₨ 150Current price is: ₨ 150.
HP3150 SMD-8 LOGIC OUT OPTOCOUPLER Price in Pakistan
Original price was: ₨ 150.₨ 130Current price is: ₨ 130.

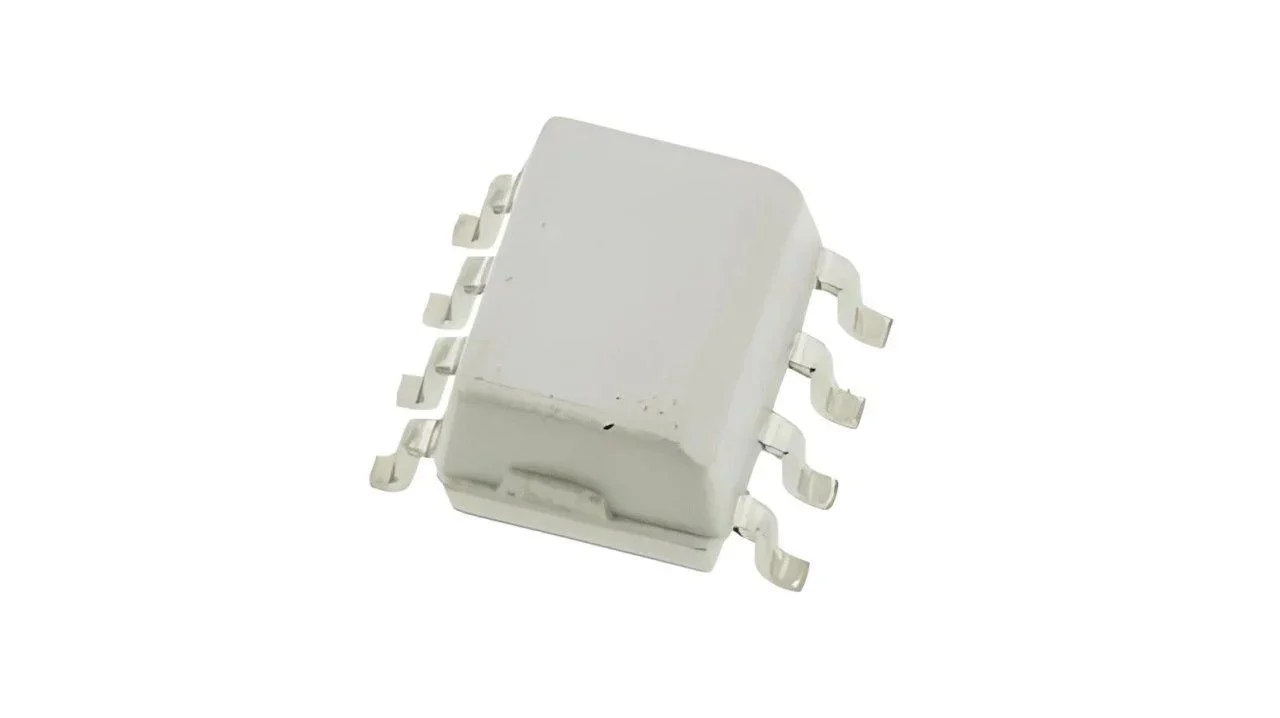

The A3150 IC HCPL3150 Driver consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices.
The voltage and current supplied by this optocoupler make it ideally suited for directly driving IGBTs with ratings V/50 A. For IGBTs with higher ratings, the HCPL-3120 can be used to drive a discrete power stage which drives the IGBT gate.
0.1 µF bypass capacitor must be connected between pins 5 and 8.
A3150 IC price in Pakistan
