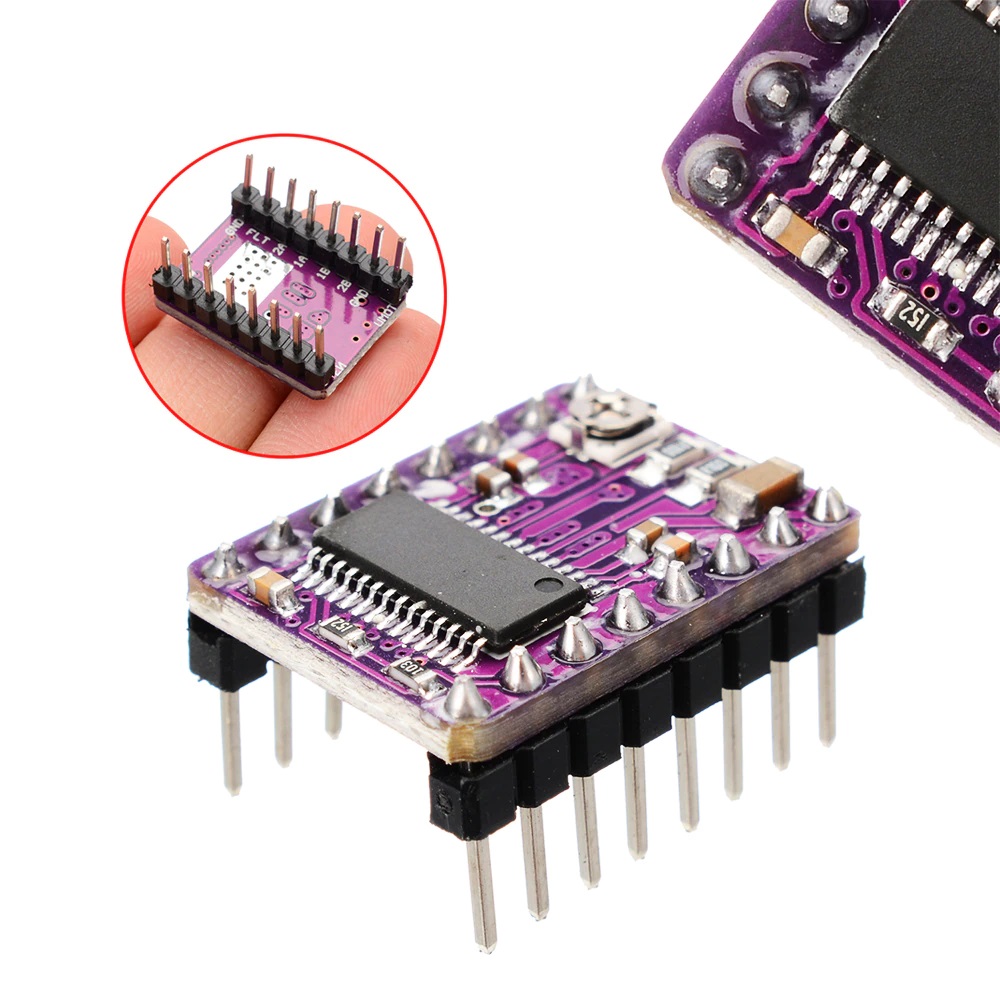

DRV8825 Stepper Motor Driver With Aluminum Heat Sink

Features Of Drv8825 Stepper Motor Driver RAMPS Heat Sink 3D Printer Motor Driver:
Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
Simple step and direction control interface
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
45 V maximum supply voltage
Built-in regulator (no external logic voltage supply needed)
Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
Short-to-ground and shorted-load protection
4-layer, 2 oz copper PCB for improved heat dissipation
Exposed solderable ground pad below the driver IC on the bottom of the PCB
Specifications Of Arduino DRV8825 Microstepping Bipolar Stepper Motor Controller:
Model: DRV8825
Supply Voltage: 8.2 – 42 VDC.
Current Capacity : 2.2A max(24V).
Continuous current per phase: 1.5 A.
Minimum Logic voltage: 2.5V.
Maximum Logic Voltage: 5V.
Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
Dimensions : 15 x 20 mm.
Weight: 4 gm.
Pins Description:

Package Include:
1x DRV8825 stepper motor driver with aluminum heat sink
