The reed switch is simply a magnetic activated switch, as long as a magnet is close to it the reed switch will remain closed. This switch should close when the included magnet is within 15mm of the switch. Once the magnet is removed, the switch opens, breaking the circuit. The reed switch can handle a maximum of 100mA and a maximum of 200VDC.
-14%
MC33883 Smd SOP20 H-Bridge Gate Driver IC Price in Pakistan
Original price was: ₨ 1000.₨ 850Current price is: ₨ 850.
TLP627-2 Optoisolator Transistor Output 5000Vrms 2 Channel, 8-DIP Price in Pakistan
Original price was: ₨ 200.₨ 150Current price is: ₨ 150.

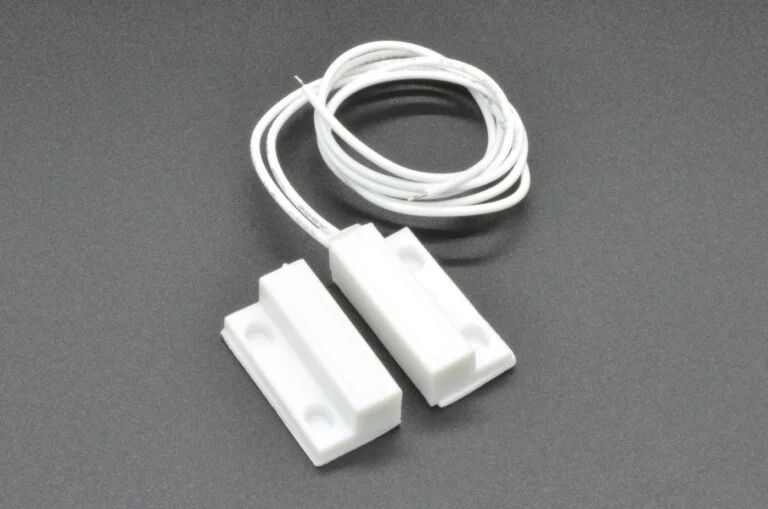

Door Magnetic Sensor Price in Pakistan
Original price was: ₨ 350.₨ 300Current price is: ₨ 300.
- Dimensions (Housing): 27.5 x 13.6 x 9mm
- Wire Length: 300mm
- Maximum Current: 100mA
- Maximum Voltage: 200VDC
- Magnet Range: approx. 15mm
- Switch Type: Normally Open
