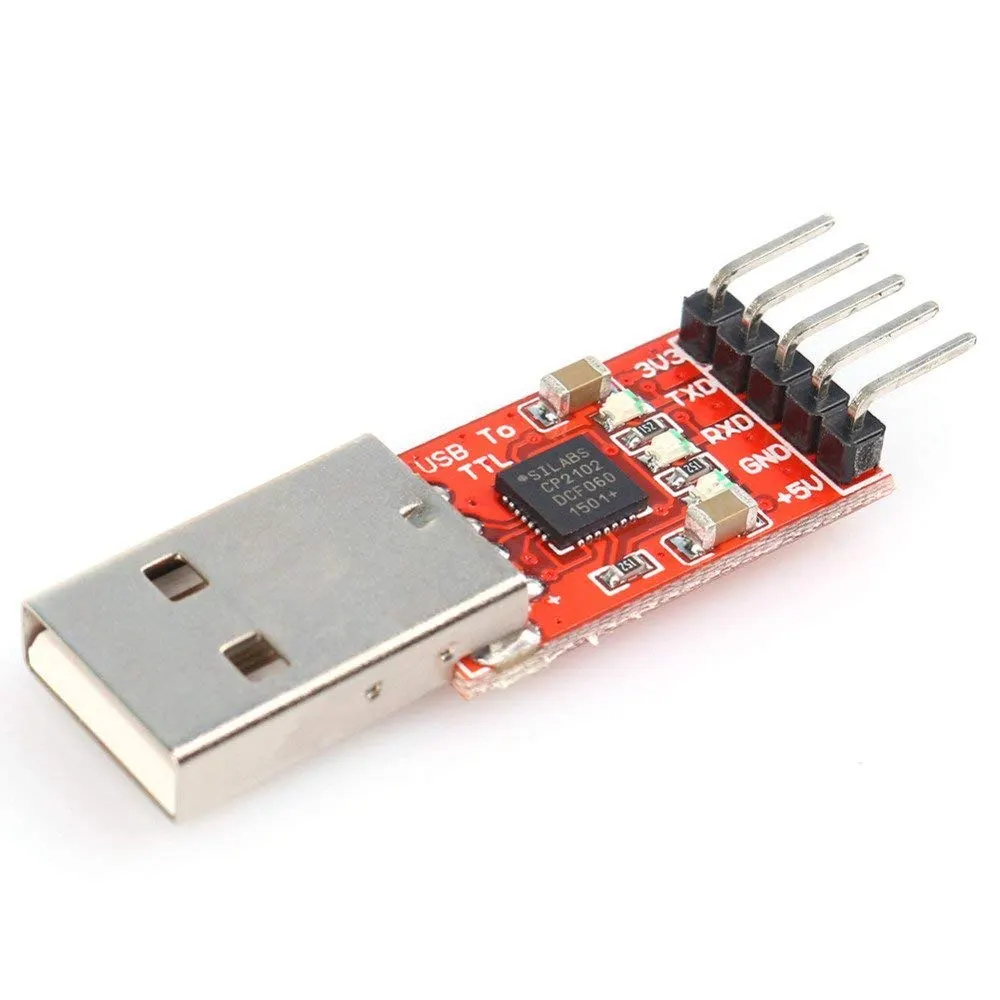

    Cp2102 Usb To Serial Usb To Uart Ttl Serial Module

    Original price was: ₨ 550.Current price is: ₨ 450.

    CP2102 chip from SiLabs is a single-chip USB to UART bridge IC. This cp2102 USB to serial requires minimal external components.CP2102 can be used to migrate legacy serial port based devices to USB.

    Weight 300 kg
    Compare
    Add to wishlist
    Category:
    Description

    eatures:
    Stable and reliable chipset CP2102.
    USB specification 2.0 compliant with full-speed 12Mbps.
    Standard USB type A male and TTL 6pin connector.
    6pins for 3.3V, RST, TXD, RXD, GND & 5V.
    Baud rates: 300 bps to 1.5 Mbps
    Byte receive buffer; 640 byte transmit buffer.
    Hardware or X-On/X-Off handshaking supported.
    Event character support Line break transmission.
    USB suspend states supported via SUSPEND pins.
    Temperature Range: -40 to +85.
    Size: 42mm X 15mm.
    Weight: 4g

    Pinouts:
    TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
    RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
    RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs.
    GND = Should be common to microcontroller ground.
    3V3 = Optional output to power external circuit upto 50mA.
    5V = Optional output to power external circuit upto 100mA
    Tags
    air, cp2102, inv ok, kh, USB TO SERIAL, usb to ttl, usb to uart

    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “Cp2102 Usb To Serial Usb To Uart Ttl Serial Module”

    Your email address will not be published. Required fields are marked *

    Shipping & Delivery
    wd-ship-1
    wd-ship-2

    MAECENAS IACULIS

    Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

    ADIPISCING CONVALLIS BULUM

    • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
    • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
    • Diam parturient dictumst parturient scelerisque nibh lectus.

    Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

    Related products

    -24%
    Compare

    Arduino Due Price in Pakistan

    ,
    Original price was: ₨ 8500.Current price is: ₨ 6500.
    This Arduino Due microcontroller is based on the board of Atmel SAM3X8E ARM CortexM3 CPU. This Arduino due board is based on 32 bit ARM core microcontroller. Atmel SAM3X8E Arduino board contains 54 digital input/ output pins, 12 analog inputs, 4 UARTs, an 84 Mhz clock, an USB OTG capable connection, 2 DAC and DAC stands for Digital to Analog Converter, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Arduino board contains everything needed to support the microcontroller. We just need to connect the micro USB of Arduino Due to the computer. And this cable is included in the product pack. We just need to power it with an AC to DC adapter or battery to get started. This Arduino Due is compatible with all Arduino shields. And that works at 3.3V. these are compliant with 1.0 Arduino pinout. we provide high 6 inches micro USB cable with high-quality connection Arduino Due
    Add to wishlist
    Add to cart
    Quick view
    -9%
    Compare

    Ch340g Usb To Ttl(serial) Converter For Arduino

    Original price was: ₨ 220.Current price is: ₨ 200.
    This is PL2303 CH340G USB To TTL(Serial) Converter For Arduino Nano Raspberry Pi USB to TTL / USB-TTL /STC microcontroller programmer / PL2303 in nine upgrades plate with a transparent cover Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc. This USB-TTL converter is based on CH340G USB to Serial TTL converter chip. The module can be used for 3.3V logic level signals, and has the option to switch from 5V to 3.3V logic level using a 2 pin shunt (shortening jumper for specific pins) supplied with the module.
    Add to wishlist
    Add to cart
    Quick view
    -7%
    Compare

    ESP32 WROOM-32 38-pins Wifi+Bluetooth MCU Module

    ,
    Original price was: ₨ 1350.Current price is: ₨ 1250.
    ESP32 WROOM-32 38-pins Wifi+Bluetooth MCU Module This is ESP WROOM 32/ ESP32 Wi-Fi-BT-BLE MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. At the core of this module is the ESP32 chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MH
    Add to wishlist
    Add to cart
    Quick view
    -14%
    Compare

    Mq8 Hydrogen Gas Sensor Module In Pakistan

    Original price was: ₨ 350.Current price is: ₨ 300.
    MQ8 MQ 8 MQ-8 Hydrogen Gas Sensor Module H2 Alarm Detection MQ-8 Sensor Hydrogen Gas Sensor Module H2 Alarm Detection use in clean air low conductivity tin oxide (SnO2). When there is the environment in which the combustible gas sensor, conductivity sensor with increasing concentration of combustible gases in air increases. Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-8 hydrogen gas sensor of high sensitivity, the monitoring of the other hydrogen-containing gas is also very satisfactory. This sensor can detect a wide range of hydrogen gas, city gas, in particular, is a low-cost sensor for a variety of applications.
    Add to wishlist
    Add to cart
    Quick view
    -30%
    Compare

    Official Raspberry Pi Case for Raspberry Pi 5, Built-in Cooling Fan, Red/White Color

    ,
    Original price was: ₨ 4000.Current price is: ₨ 2800.
    Specification Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5 Fan speed control: Pulse width modulation control with tachometer Maximum airflow: 2.79 CFM Maximum fan speed: 8000 RPM +/- 15% Case material: ABS (base, frame, lid) and PC (fan assembly)
    Add to wishlist
    Add to cart
    Quick view
    -12%
    Compare

    Pre Soldered ESP32 S3 WROOM 1 Development Board 2.4G Wifi BT Module BLE5.0 in Pakistan

    ,
    Original price was: ₨ 1700.Current price is: ₨ 1500.
    he ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, ESP32-S3-WROOM-1U, or ESP32-S3-WROOM-2, a general-purpose Wi-Fi + Bluetooth® Low Energy
    Add to wishlist
    Add to cart
    Quick view
    -10%
    Compare

    USB to RS485 / USB 2.0 to RS 485 Serial Converter Adapter

    Original price was: ₨ 300.Current price is: ₨ 270.
    The USB to RS485 Converter Adapter module support WIN7 XP Vista Linux Mac OS provides an easy-to-use RS485 interface by means of a Virtual Com Port on the user’s system. There are no command structures, whatever is sent to the Virtual Comm Port is automatically converted to RS485 and vice versa. The module is completely self-powered from the USB bus. Controlling / Communicating with RS-485 devices from your PC has never been easier! This device is plug-and-play. It shows up as a serial/com port and is accessible from applications or hyper-terminal.
    Add to wishlist
    Add to cart
    Quick view
    -21%
    Compare

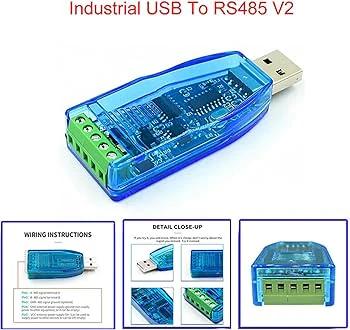

    Zk-u485 Industrial Grade Usb To Rs485 Converter Module
