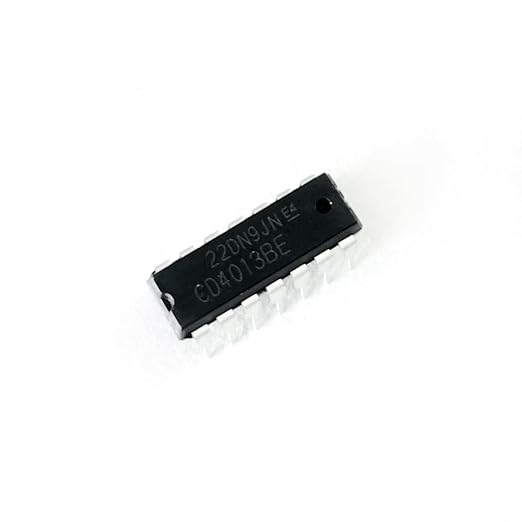

CD4013 consists of two identical, independent data-type flip-flops. Each flip-flop of CD4013 has independent data, set, reset, and clock inputs and Q and Not Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications.
Features of CD4013D type flip-flop:
Power Delivery
Grid Infrastructure
Medical, Healthcare, and Fitness
Body Electronics and Lighting
Building Automation
Telecom Infrastructure
Test and Measurement
Features of CD4013D type flip-flop:
Functions: Setting (Preset) and Resetting
Type: Type D
Output type: differential
Number of components: 2
Bit per component: 1
Frequency-clock: 24MHz
Maximum propagation delay at different V, maximum CL: 90ns @ 15V, 50pF
Trigger Type: Positive Edge
Current-output high, low: 6.8mA, 6.8mA
Voltage-power supply: 3V~18V
Current-static: [4] UA
Input Capacitance: 5pF
