Arduino Uno R4 Minima Clone Price in Pakistan

Arduino Uno R4 Minima Clone Price in Pakistan

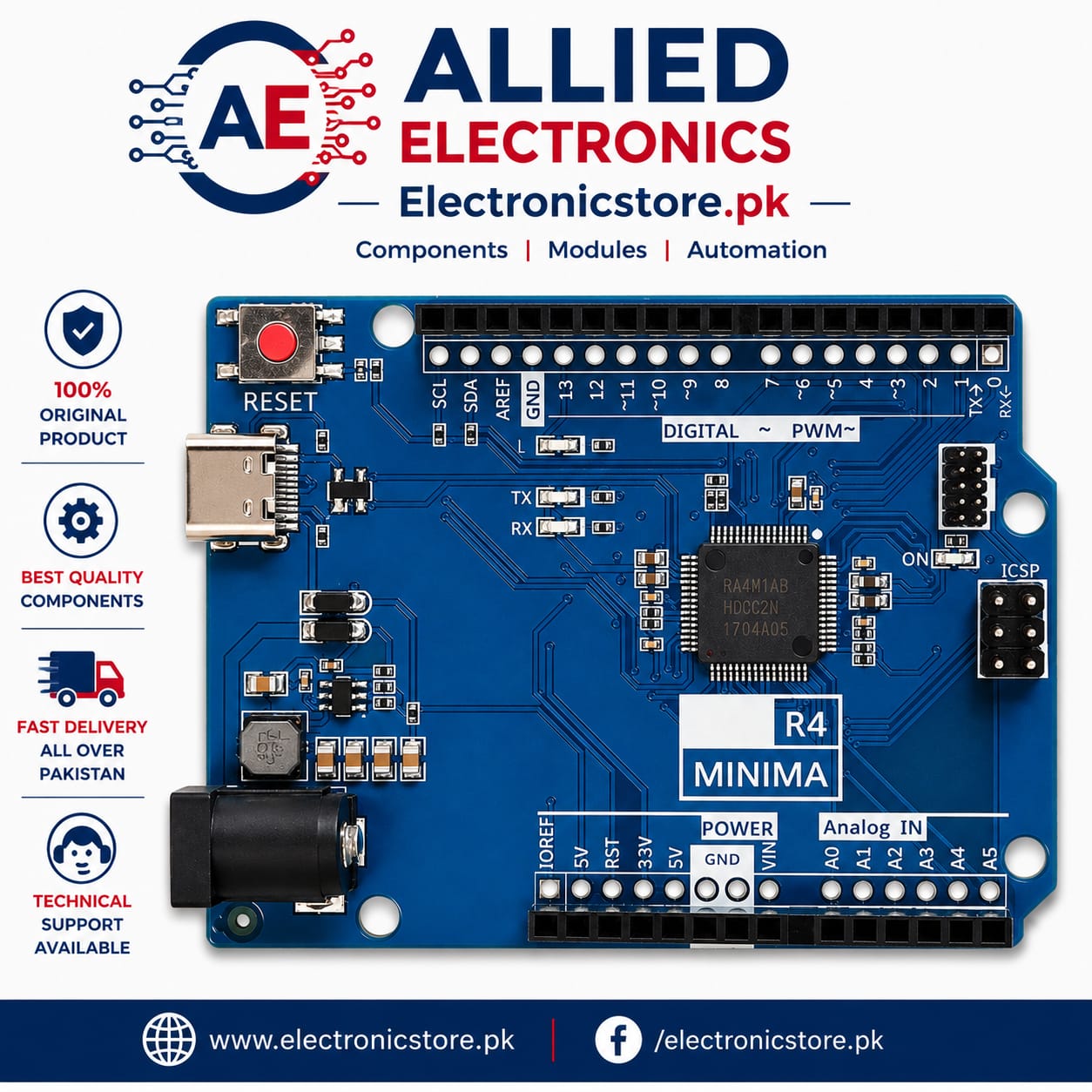

This Uno R4 Minima development board improved version compatible with Arduino Uno R4 Minima.

Features:

• Hardware compatibility with Uno form factor, 5V operating voltage, as the Uno R3, compatible with existing shields and projects
• The Uno R4 Minima introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP
• The Uno R4 Minima now supports a wider input voltage range, allowing power supplies up to 24V
• SWD connector, Simply connect an external debugger and effortlessly monitor the inner workings of your code and hardware
• HID Support: The Uno R4 Minima comes with built-in HID (Human Interface Device) support, enabling it to simulate a mouse or keyboard

Specifications:

• Operating Voltage: 5V
• Memory: 256KB Flash / 32KB SRAM
• Input Voltage: 6-24V
• Clock Speed: 48 MHz
• Programming Port: USB-C
• MCU: RA41M1 from Renesas (Cortex M4)
• HID device (emulate a mouse or a keyboard)
• Improved power section (up to 24V through VIN)
• CAN bus
• DAC (12 bits)
• Op amp
