Arduino Uno R3 Smd price in pakistan

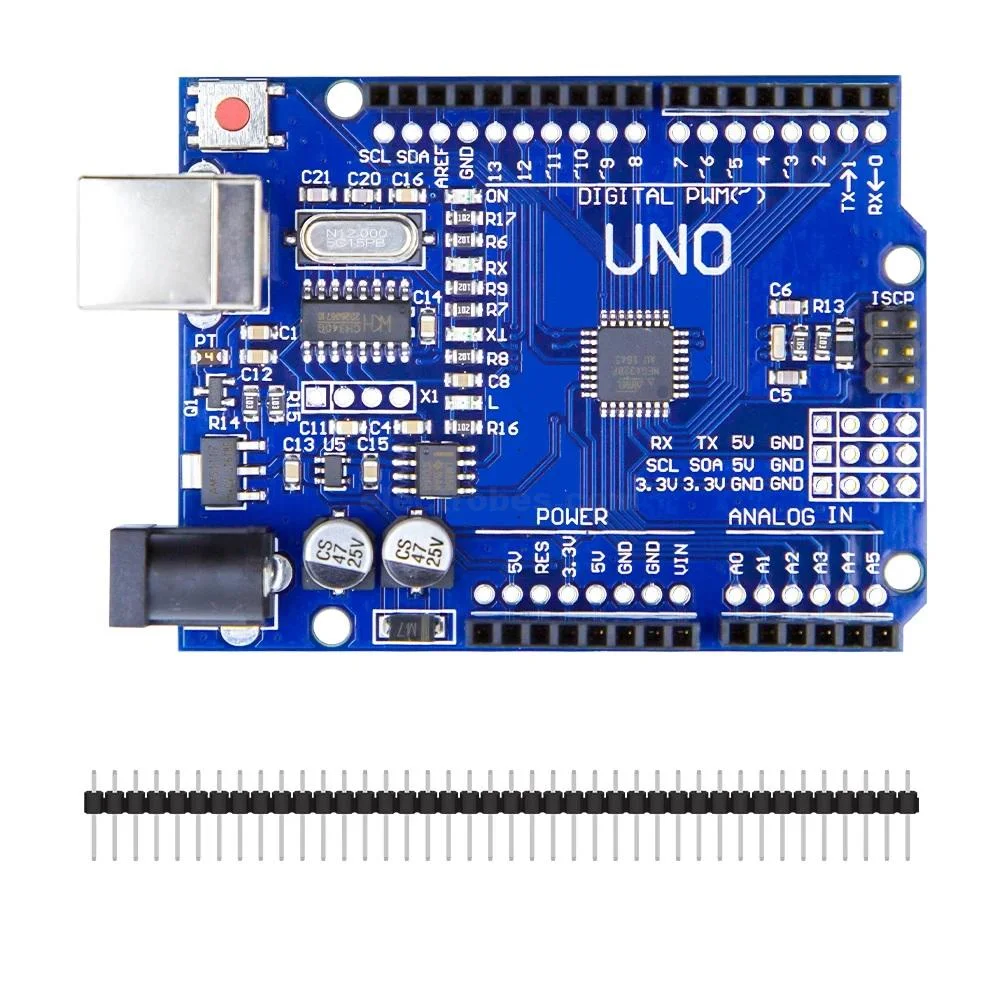

Specifications Of Improved Arduino Uno R3 With ATmega328-AU Microcontroller Development Board:

1. ATmega328-AU microcontroller with UNO Bootloader Installed.
2. USB Programming Facilitated by the CH340G.
3. USB-B Connector and cable included.
4. Input voltage – 7-15V.
5. 0-5V outputs with 3.3V compatible inputs.
6. 14 Digital I/O Pins (6 PWM outputs).
7. 6 Analog Inputs.
8. ISP Header.
9. 32k Flash Memory.
10. 16MHz Clock Speed.
11. All SMD Construction.
12. R3 Shield Compatible

Features Of Cheap Version ArrduinoUnoR3 Programming Board Module:

• Main Changes from the older version:
• Add two rows of holes for the pins. So it can be connected with a normal Dubond line.
• Add 3 rows of holes for wiring.
• Change the in-line package of ATMEGA328P to a flat package.
• CH340G Replace ATmega16U2
• Plug the UNO development board, the driver will be automatically installed.
• select the board UNO inside the die.
• Select the COM port, this can be in my computer queries, just inside your UNO port development board
• You’d better choose Arduino own routine procedures, burn them into the board

Package Includes:

• 1 x Arduino Uno SMD Board
