Features Of Arduino Due ARM Cortex M3 Board With USB Cable :
- A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
- CPU clock at 84Mhz
- 96KBytes of SRAM
- 512KBytes of flash memory for code
- A DMA controller, that can relieve the CPU from doing memory intensive tasks.
Specifications Of Atmel Sam3x8e Arduino Due Microcontroller:
- Microcontroller:Â AT91SAM3X8E
- Operating Voltage:Â 3.3V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits):Â 6-16V
- Digital I/O Pins: 54 (of which 12 provide PWM output)
- Analog Input Pins:Â 12
- Analog Outputs Pins: 2 (DAC)
- Total DC Output Current on all I/O lines: 130 mA
- DC Current for 3.3V Pin: 800 mA
- DC Current for 5V Pin: 800 mA
- Flash Memory:Â 512 KB all available for the user applications
- SRAM: 96 KB (two banks: 64KB and 32KB)
- Clock Speed: 84 MHz
Due follows the 1.0 pinout:
- TWI: SDA and SCL pins that are near to the AREF pin.
- The IOREF pin which allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
- An unconnected pin, reserved for future use
Connections / Interfaces
Digital I / O pins:Â 54
With PWM:Â 12
USB:Â Yes
SPI:Â No
I²C: No
ICSP:Â Yes
TWI:Â 2x
UART:Â 4x
CAN:Â Yes
SAC:Â 2x
LAN:Â No
Bluetooth:Â No
Useful Links :
Package Includes :

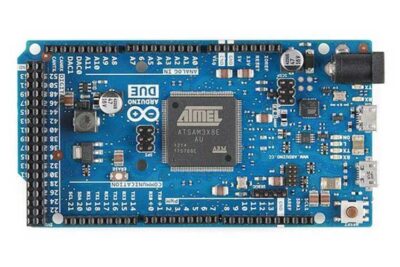

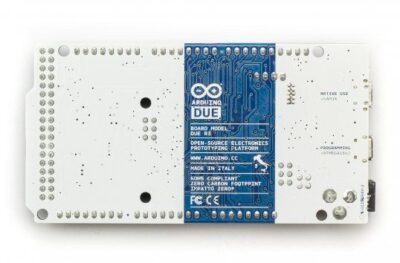

- 1 x Arduino Due, AT91SAM3X8E ARM Cortex-M3 Board
- 1 x 6 Inch Micro USB Cable – A to Micro B
