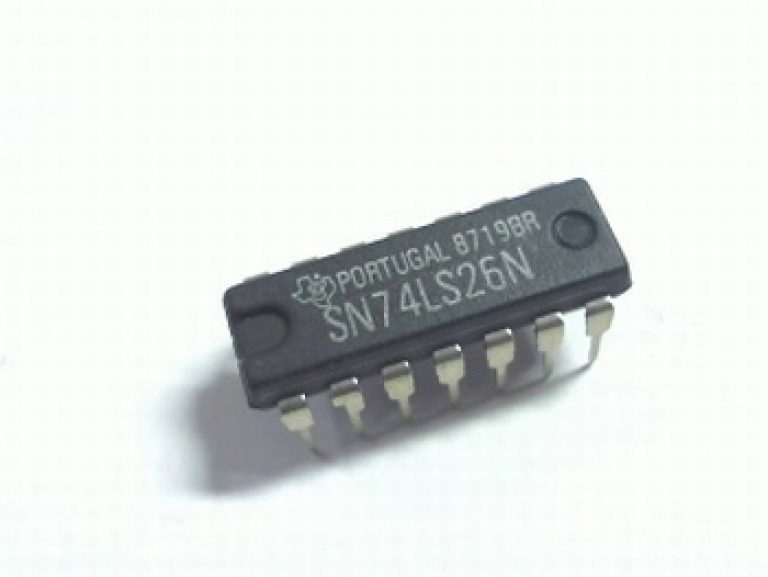

74LS26 is a quad 2 input NAND gate IC with open collector outputs. It is a low power Schottky (LS) device, which means that it consumes less power than other types of logic gates. The open collector outputs allow the 74LS26 to use to create wired-OR and wired-AND logic circuits.
74LS26 Quad 2-Inputs NAND Gate IC is available in a 14-pin dual-inline package (DIP). It can use in a variety of applications, including digital logic circuits, data acquisition systems, and control systems.
The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC. 74LS26 Contain Quad 2-Input NAND Gates.
74LS26 Quad 2-Inputs NAND Gate IC contains four independent gates each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation. These gates feature high-voltage output ratings (up to 15V) for interfacing with 12V systems. Although the outputs are rated for 15V, the device supply is still rated for 5V.
This is the Low power Schottky family that uses TTL circuitry. These are fast in operations but consume more power than other logic families.
74LS26 can also use to create wired-AND logic circuits. In a wired-AND circuit, the outputs of two or more logic gates are connected together. The output of the circuit will be high (1) only if all of the inputs are high (1).
The 74LS26 is a powerful and versatile logic gate that can use in a variety of applications. It is a reliable and low cost option for designers who need a high-performance logic gate.
Features : –
74LS26 is available in a 14-pin dual-inline package (DIP). It can use in a variety of applications, including digital logic circuits, data acquisition systems, and control systems.
Here are some of the features of the 74LS26:
Quad 2-input NAND gate
Low-power Schottky (LS) device
Open-collector outputs
14-pin DIP package
Wide range of operating temperatures
High reliability
